Theft Deterrent Sensor Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

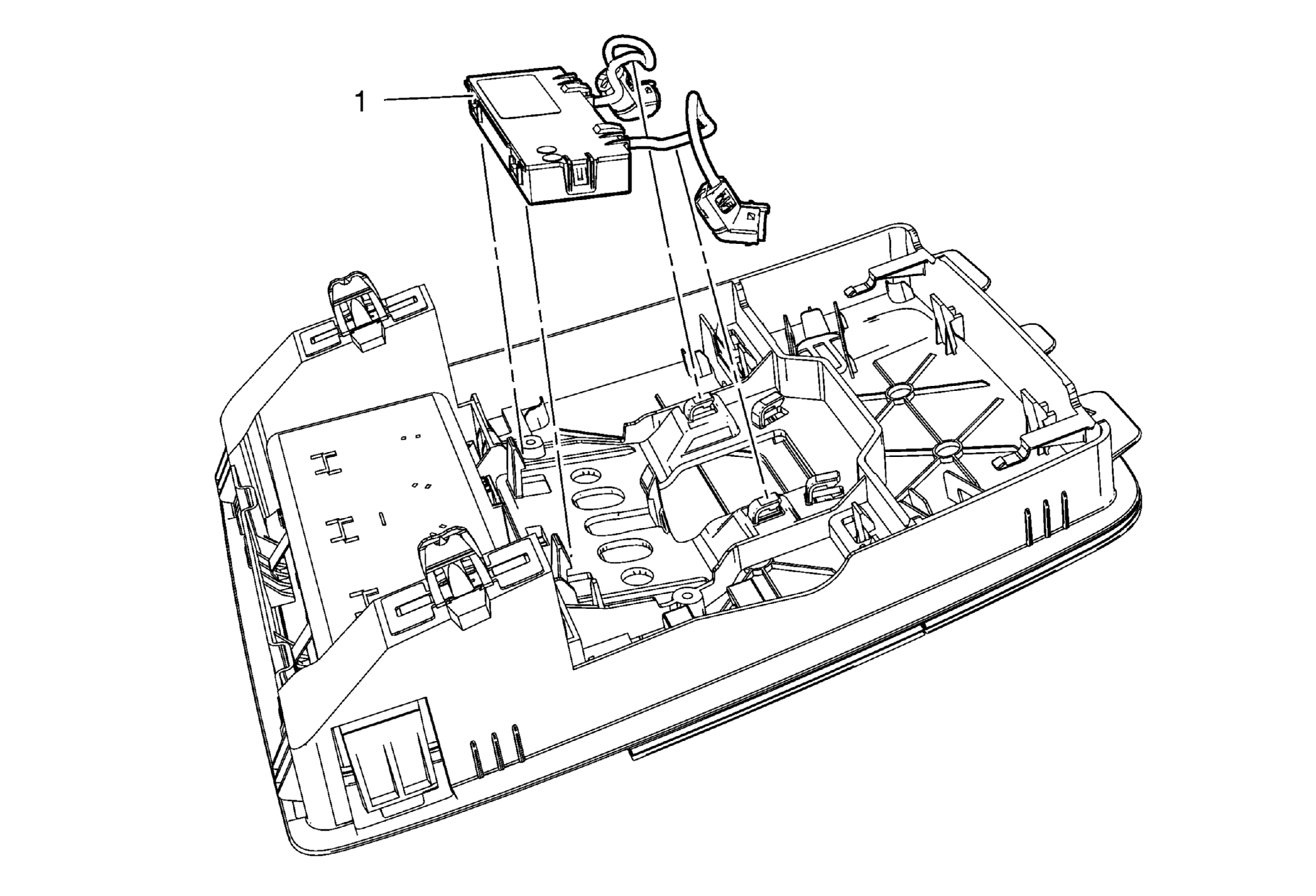

Fig 1: Theft Deterrent Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the roof console. Refer to Roof Console Replacement (Assembly) .
1	Theft Deterrent Sensor Procedure Disconnect electrical components. After repairs, refer to Control Module References for programming and set up information.

Callout

Component Name

Preliminary Procedures
Remove the roof console. Refer to Roof Console Replacement (Assembly) .

Theft Deterrent Sensor

Procedure

Disconnect electrical components.
After repairs, refer to Control Module References for programming and set up information.
