Rear Compartment Lid Release Switch Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

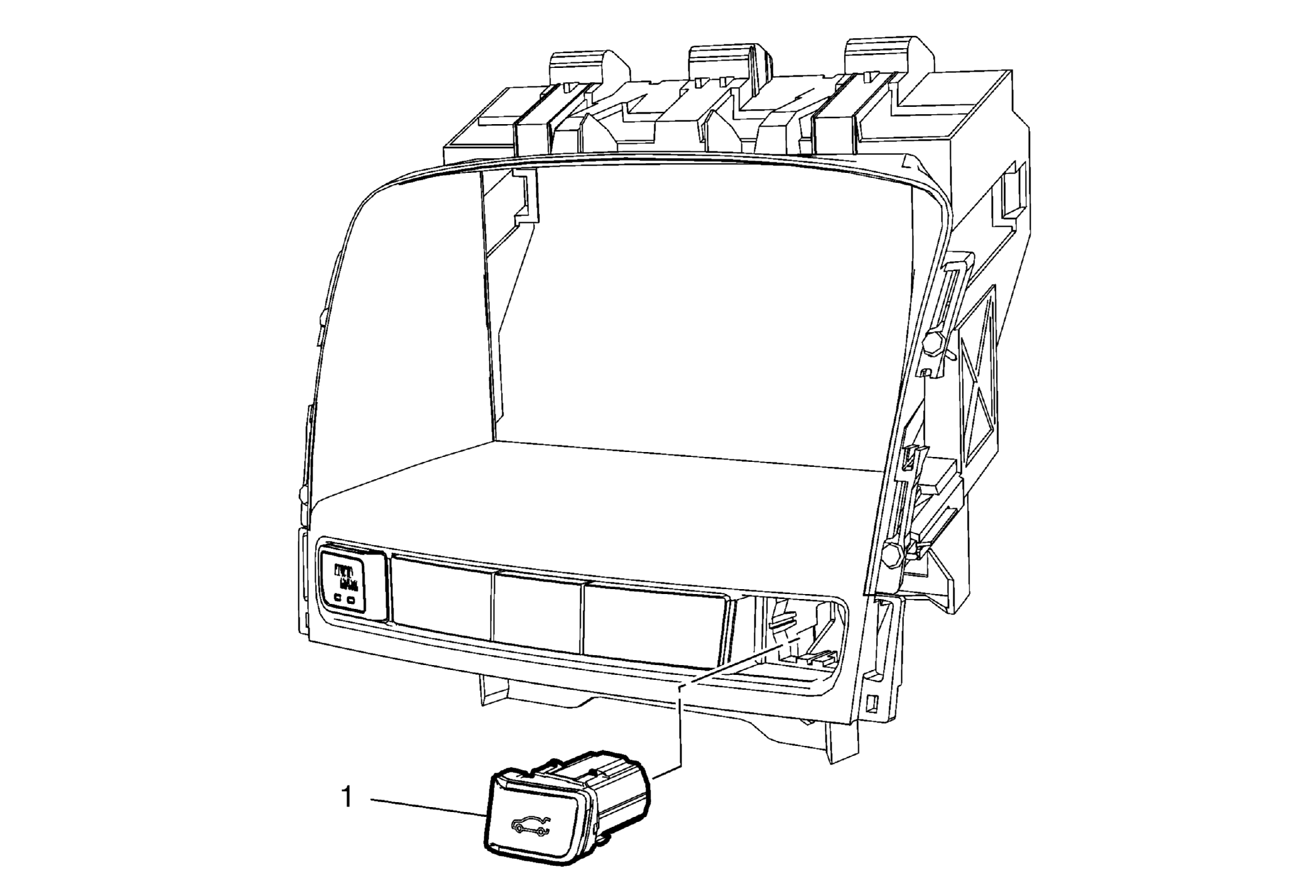

Fig 1: Rear Compartment Lid Release Switch
GM2743371Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Lid Release Switch Replacement

Callout Component Name
Preliminary Procedures
Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement .
1 Rear Compartment Lid Release Switch
Procedure
Unlock retaining tabs.
