Front Floor Console Compartment Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

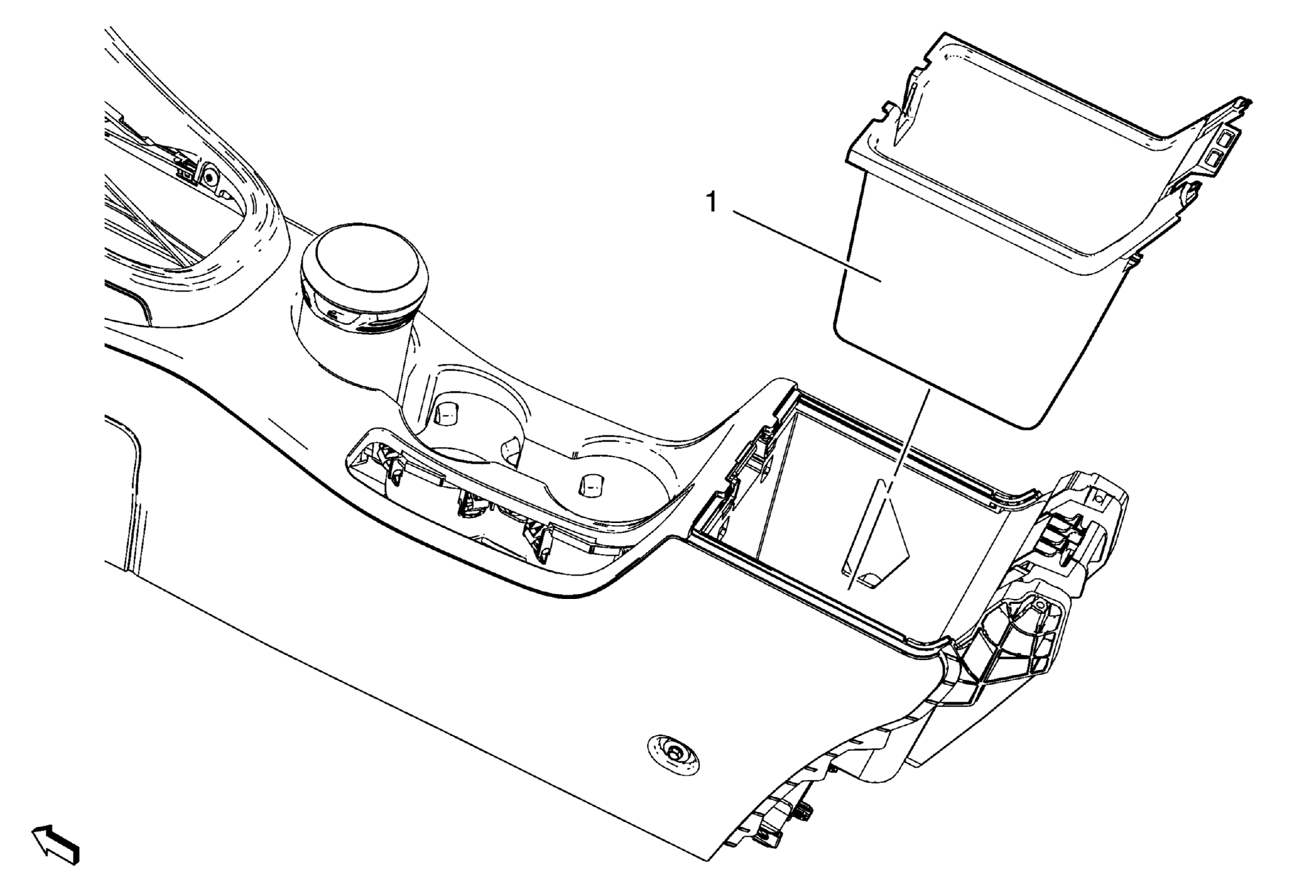

Fig 1: Front Floor Console Compartment
GM2191668Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Compartment Replacement

Callout Component Name
Preliminary Procedure
Remove front floor console armrest. Refer to Front Floor Console Armrest Replacement .
1 Front Floor Console Compartment

Procedure

  1. Disconnect electrical connectors.
  2. Transfer parts as necessary.
