Dash Upper Extension Panel Opening Cover Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

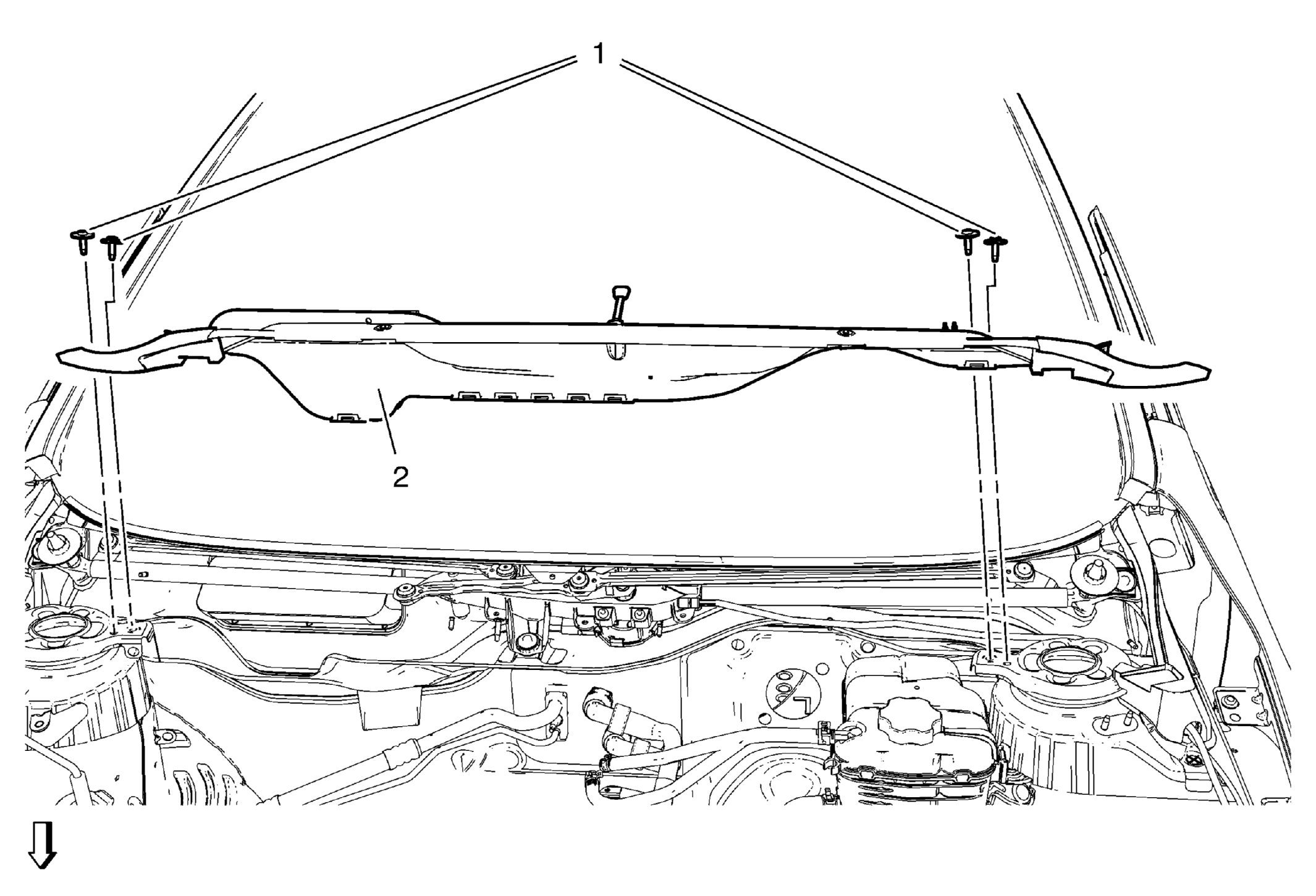

Fig 1: Dash Upper Extension Panel Opening Cover & Bolts
GM2190325Courtesy of GENERAL MOTORS COMPANY
Dash Upper Extension Panel Opening Cover Replacement

Callout Component Name
Preliminary Procedures
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1 Dash Upper Extension Panel Opening Cover Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Dash Upper Extension Panel Opening Cover
