Rear Windows Wiring Schematics

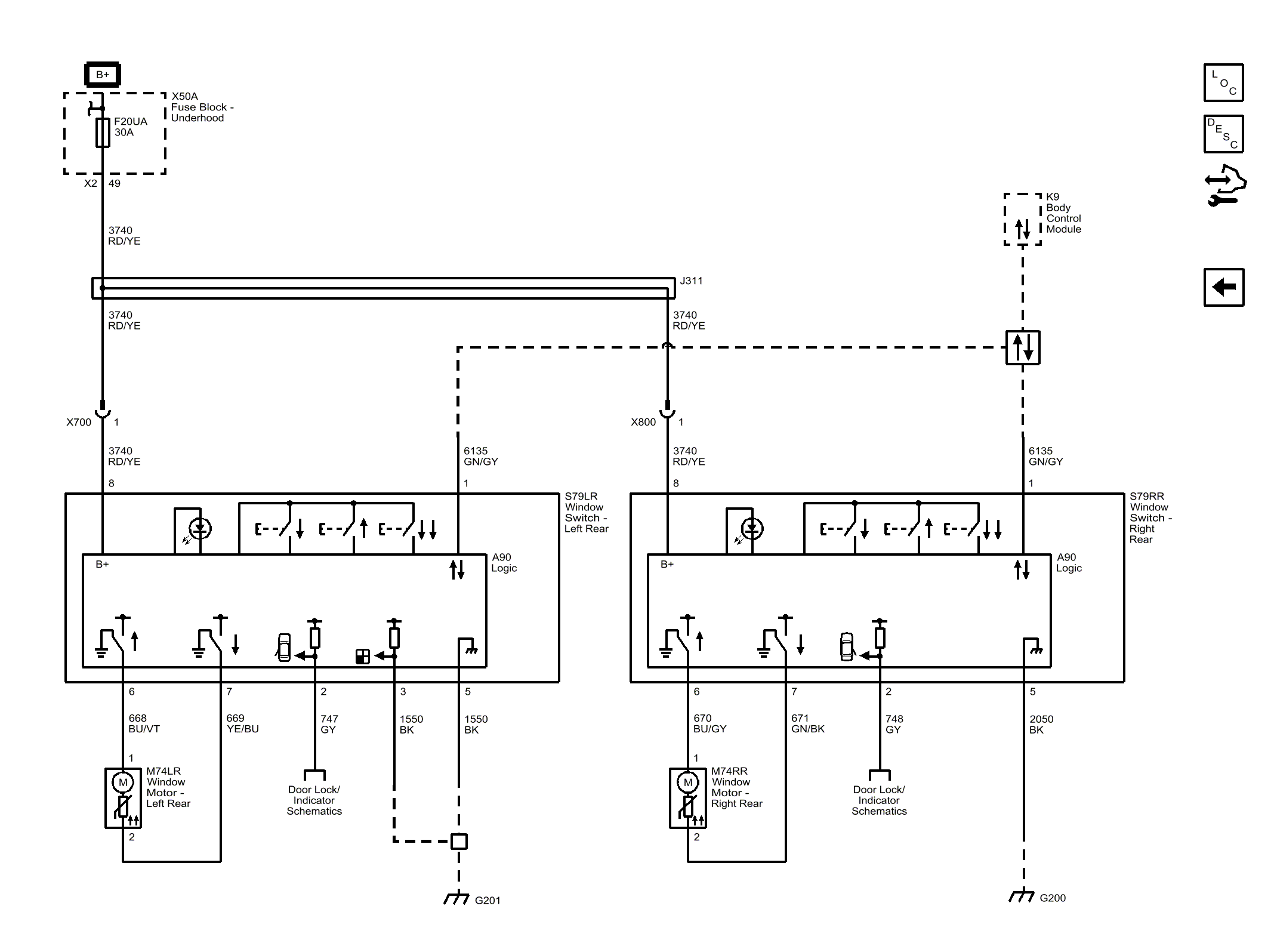

Fig 1: Rear Windows Wiring Schematic

GM3336281

Courtesy of GENERAL MOTORS COMPANY
