Driver Wiring Schematics

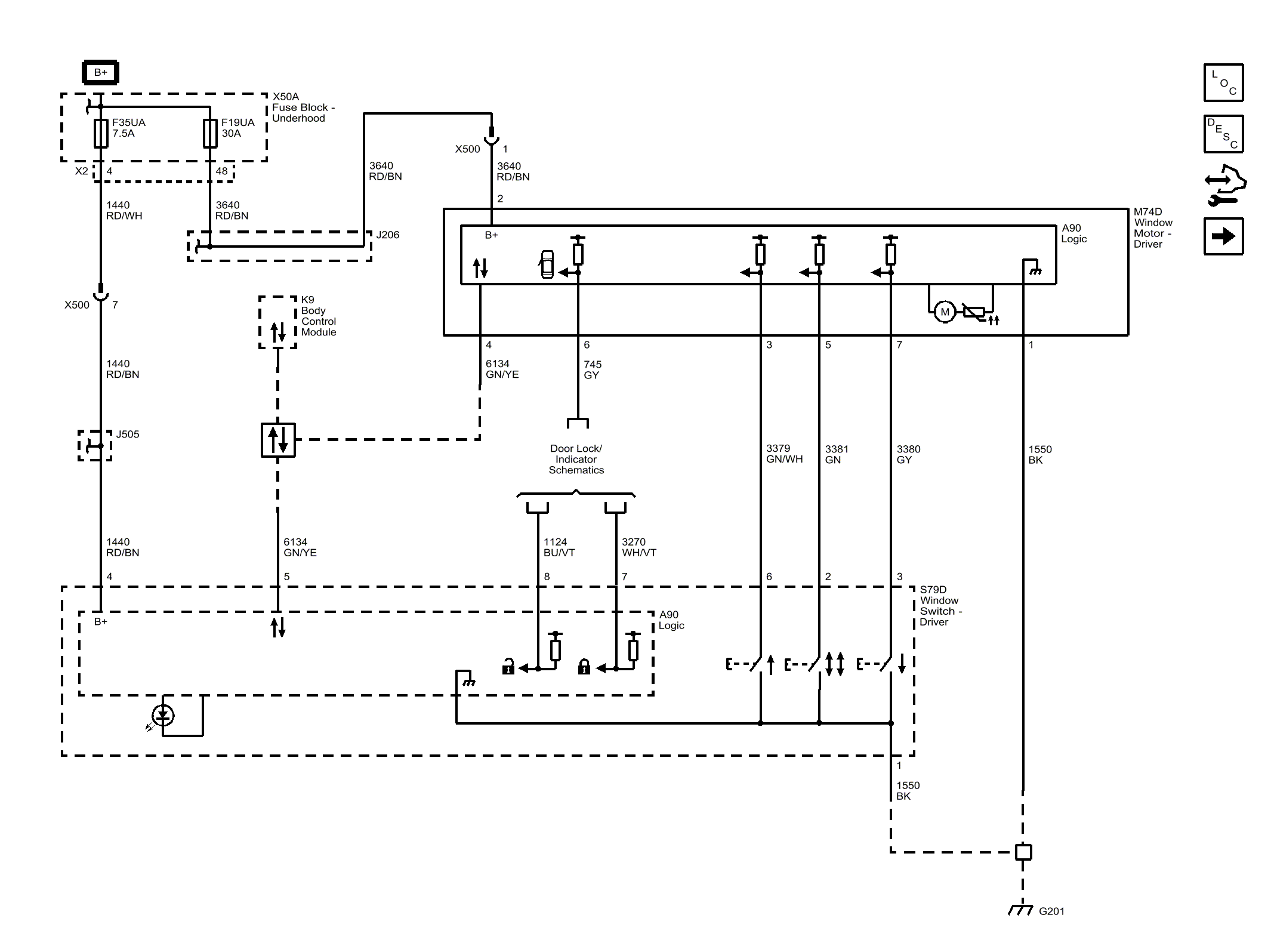

Fig 1: Driver Wiring Schematic

GM3336507

Courtesy of GENERAL MOTORS COMPANY
