Rear Side Door Window Regulator Replacement
Rear Side Door Window Regulator Replacement

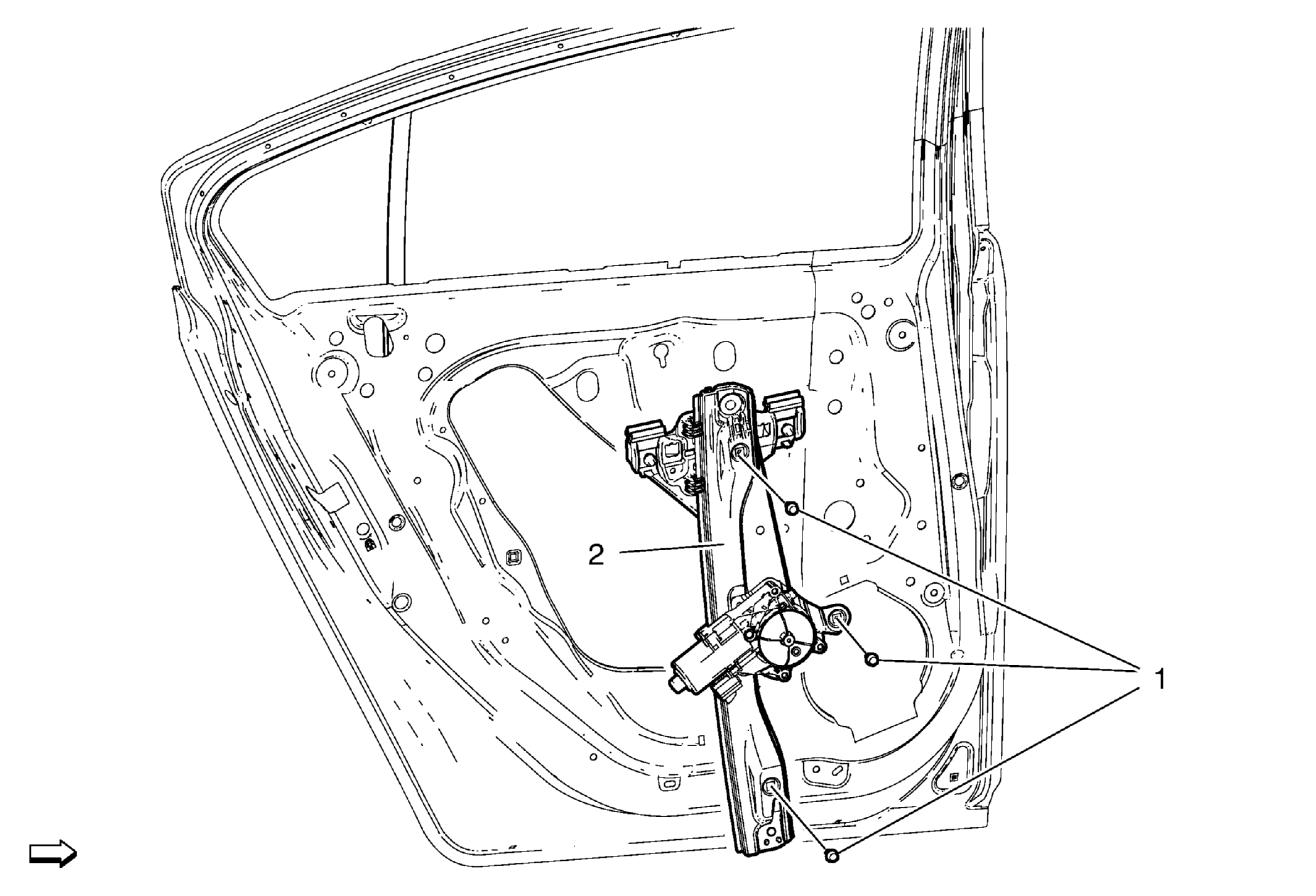

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement . |
|
| 1 | Rear Side Door Window Regulator Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution . Procedure After detaching window from regulator, manually move window to it's full up position and securely tape to window frame. Tighten 9 N.m (80 lb in) |
| 2 | Rear Side Door Window Regulator Assembly Procedure Remove all components as needed. |
