Rear Side Door Window Rear Channel Replacement

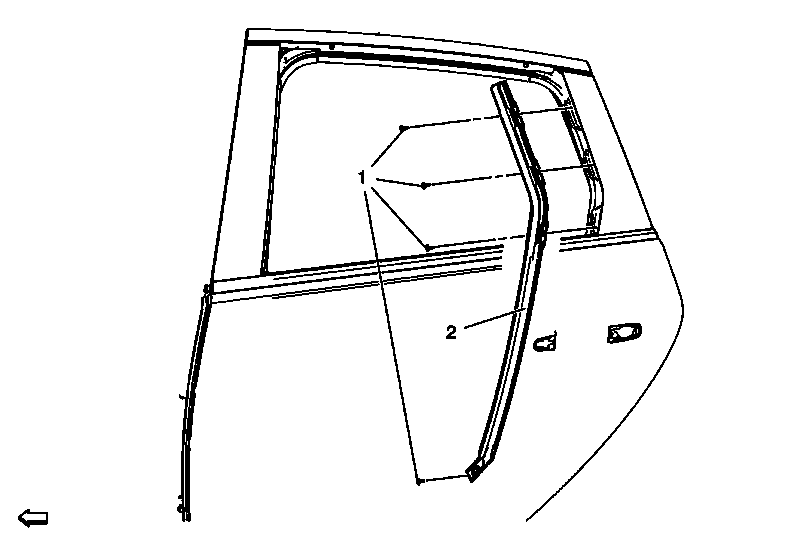

Fig 1: Rear Side Door Window Rear Channel & Bolts

Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Window Rear Channel Replacement

Callout	Component Name
Preliminary Procedure  Remove the rear side door window weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement .
1	Rear Side Door Window Rear Channel Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Rear Side Door Window Rear Channel
