Steering Wheel Secondary/Configurable Control System

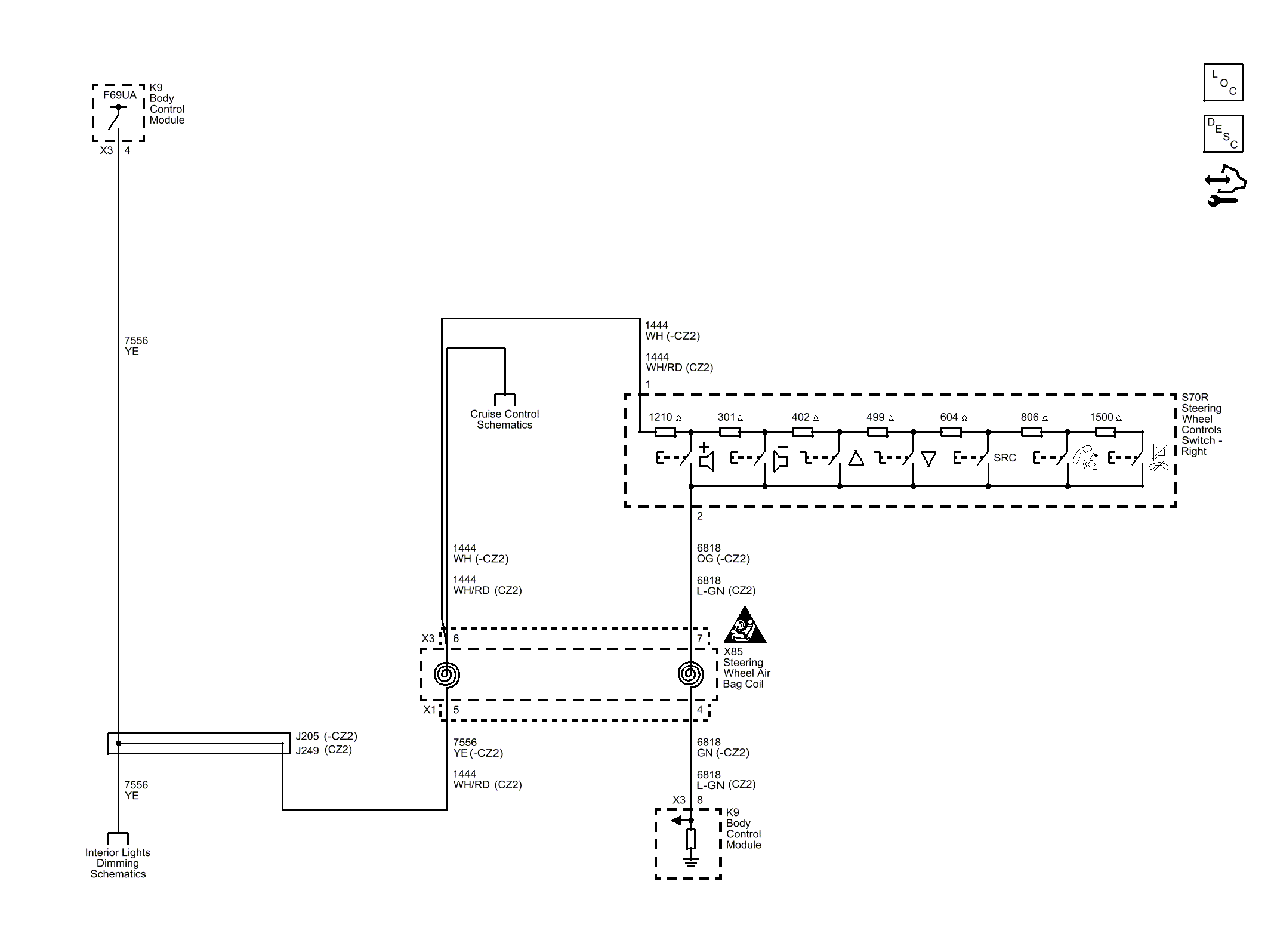

Fig 1: Steering Wheel Secondary/Configurable Control System

GM3423877

Courtesy of GENERAL MOTORS COMPANY
