Video System Schematics

WARNING: This page is about a different car, the 2010 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

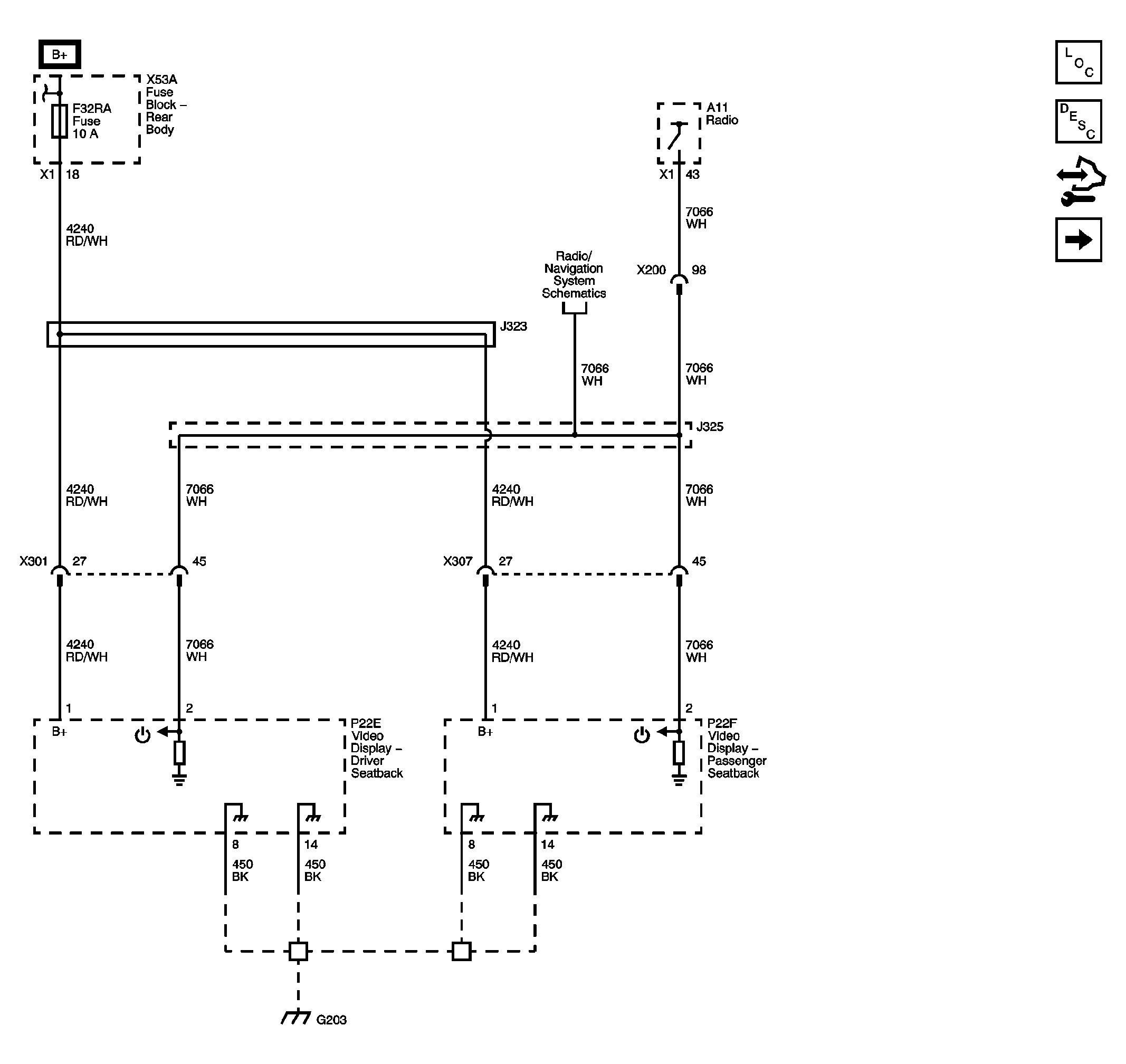

Fig 1: Display Power and Ground

Courtesy of GENERAL MOTORS CORP.

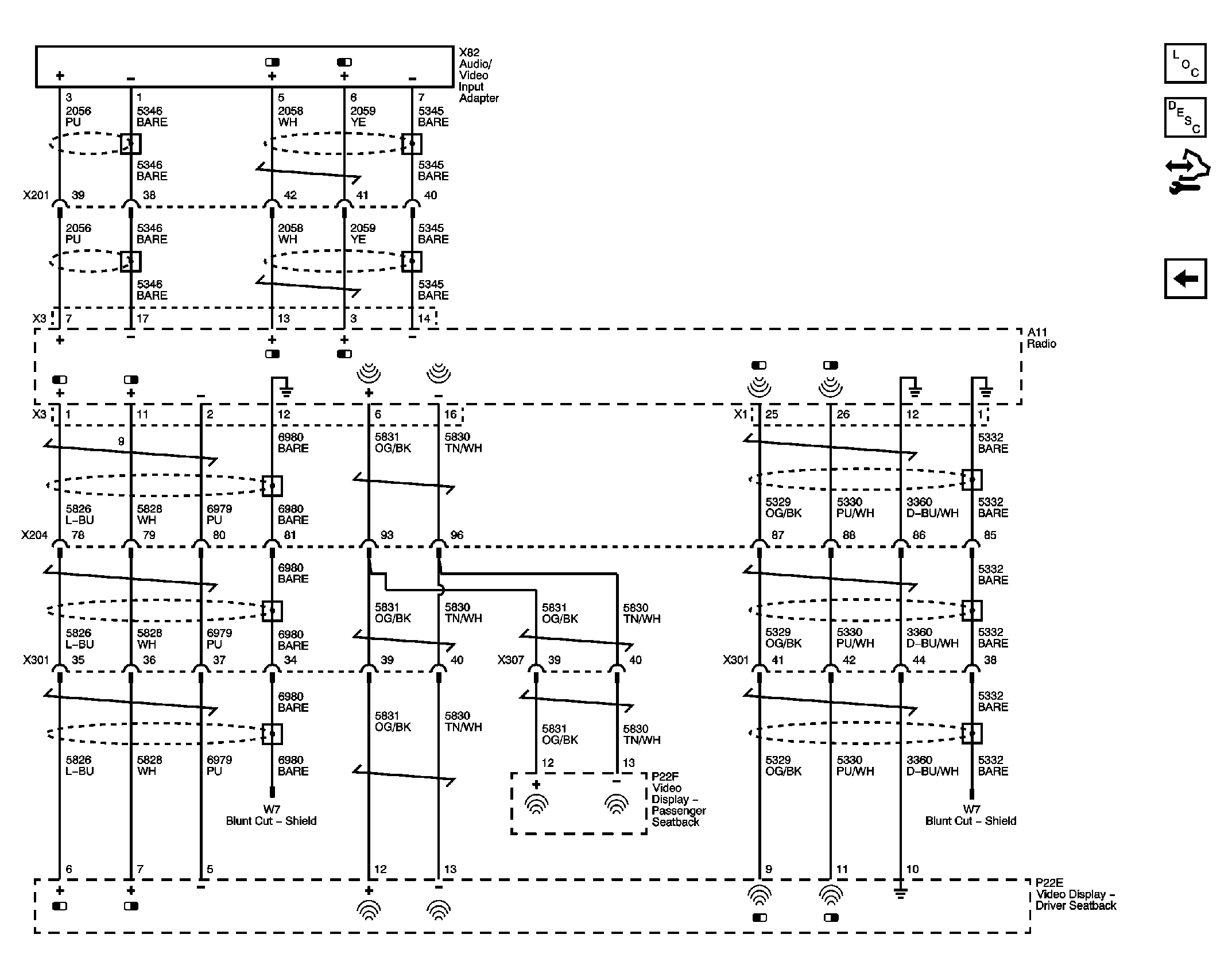

Fig 2: Video Signals

Courtesy of GENERAL MOTORS CORP.

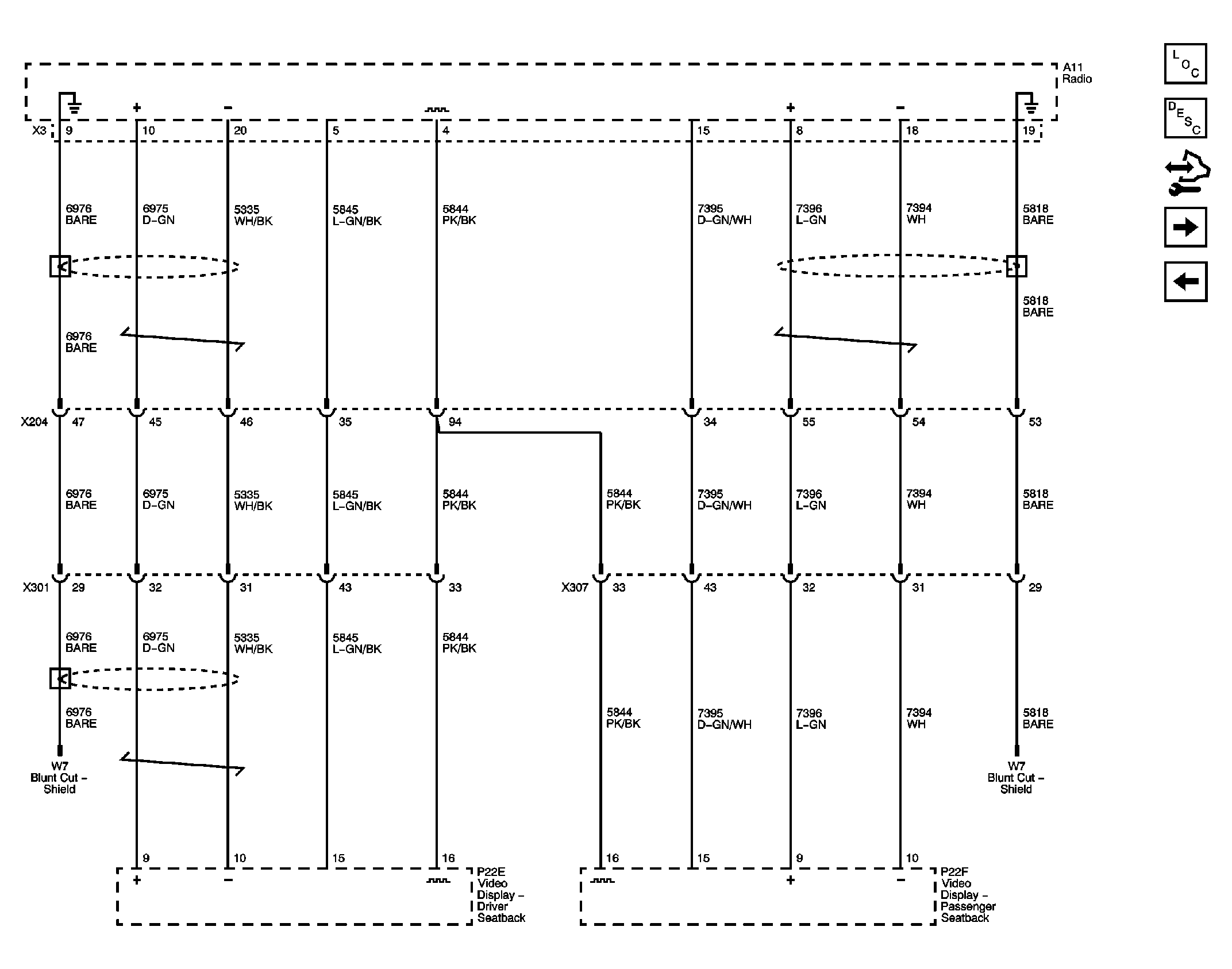

Fig 3: Audio Signals

Courtesy of GENERAL MOTORS CORP.
