Passive Entry, Passive Start Antenna

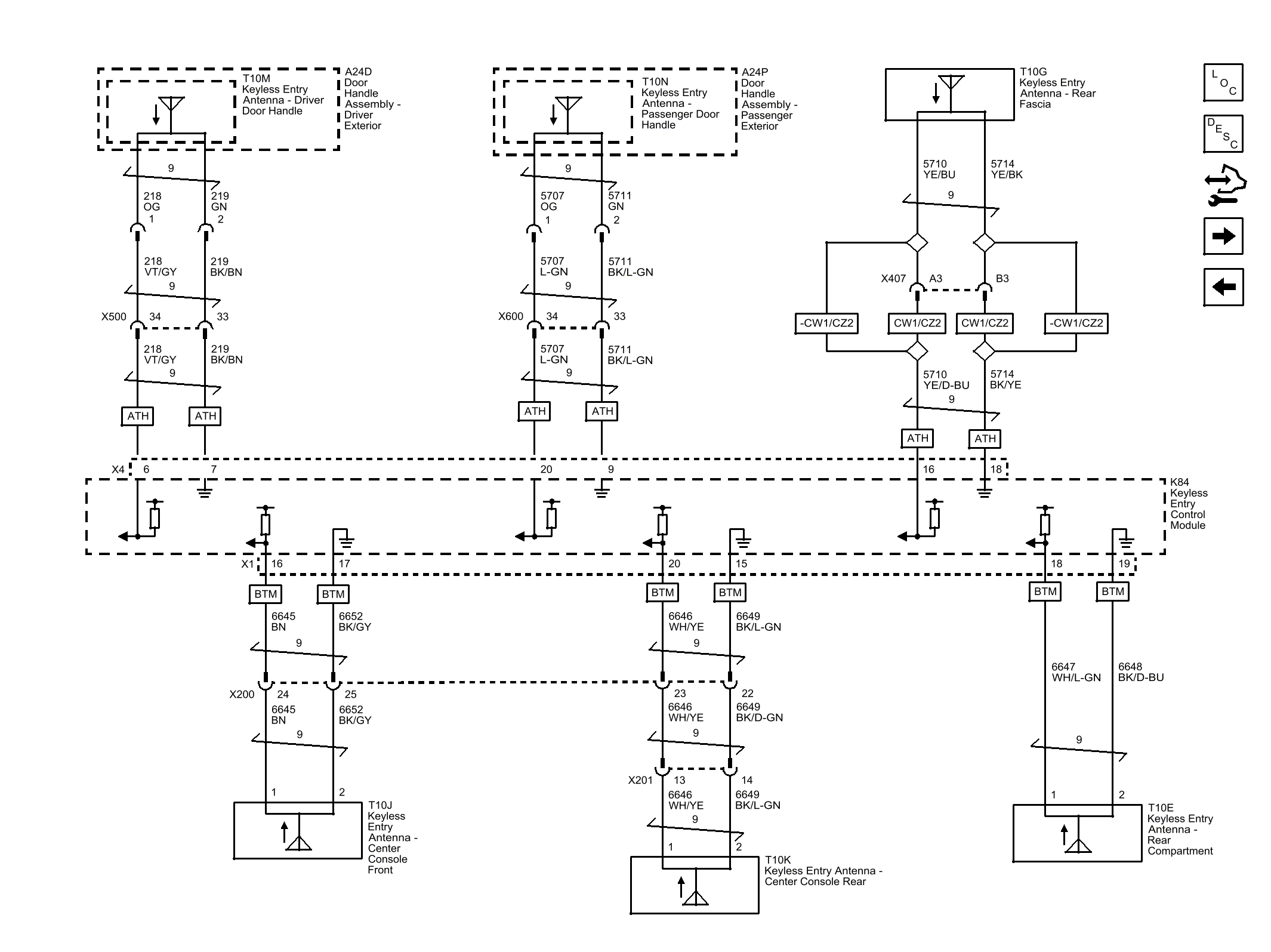

Fig 1: Passive Entry, Passive Start Antenna Wiring Schematic

GM3251200

Courtesy of GENERAL MOTORS COMPANY
