Human Machine Interface and Display, Power, Ground and Serial Data

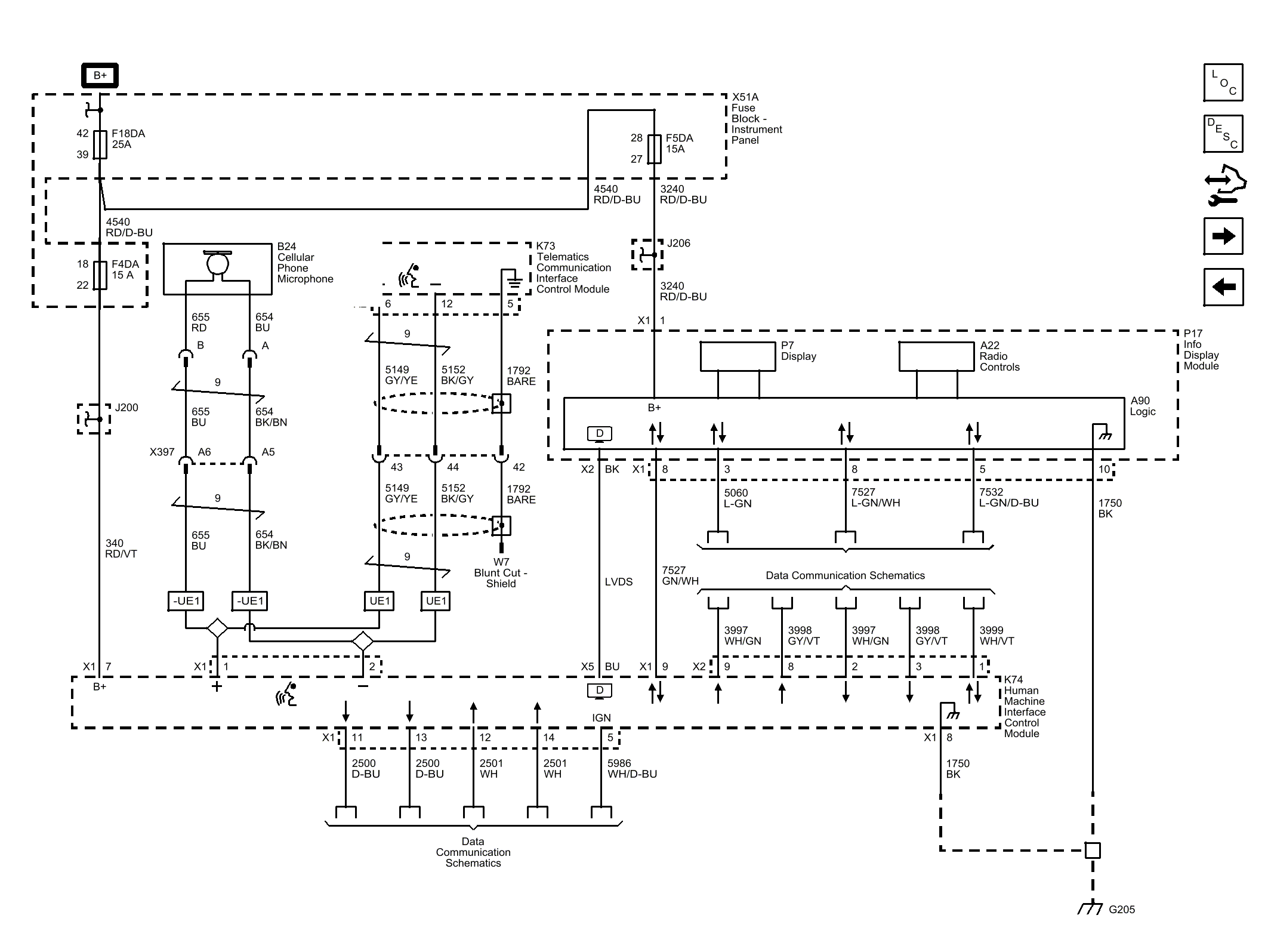

Fig 1: Human Machine Interface and Display, Power, Ground and Serial Data Wiring Schematic
GM3251108Courtesy of GENERAL MOTORS COMPANY
