Rear Seat Belt Buckle Replacement
Rear Seat Belt Buckle Replacement

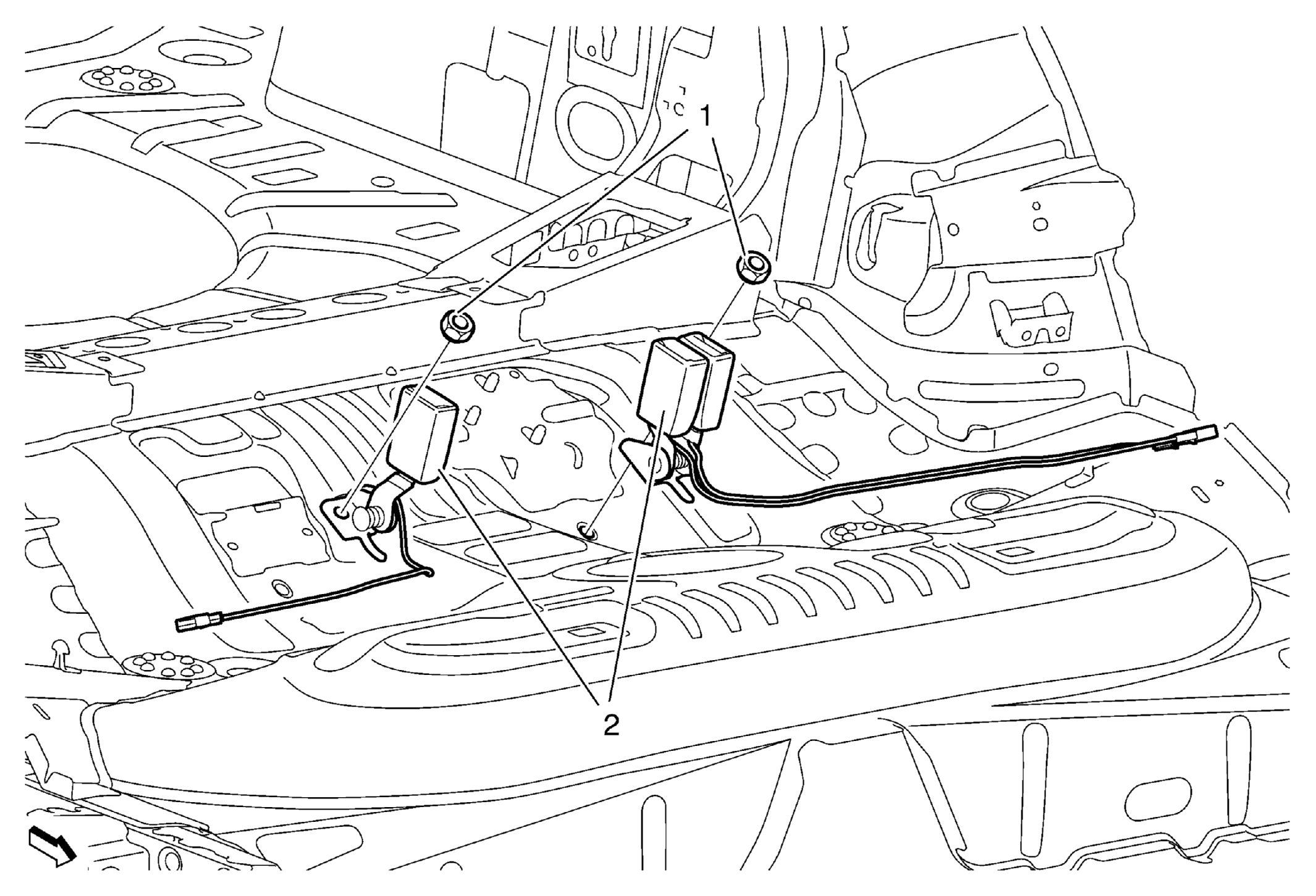

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation . |
|
| 1 | Rear Seat Belt Buckle Bracket Fastener
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Rear Seat Belt Buckle Procedure Disconnect the electrical connector, if equipped. |
