Door Window Regulator Handle Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

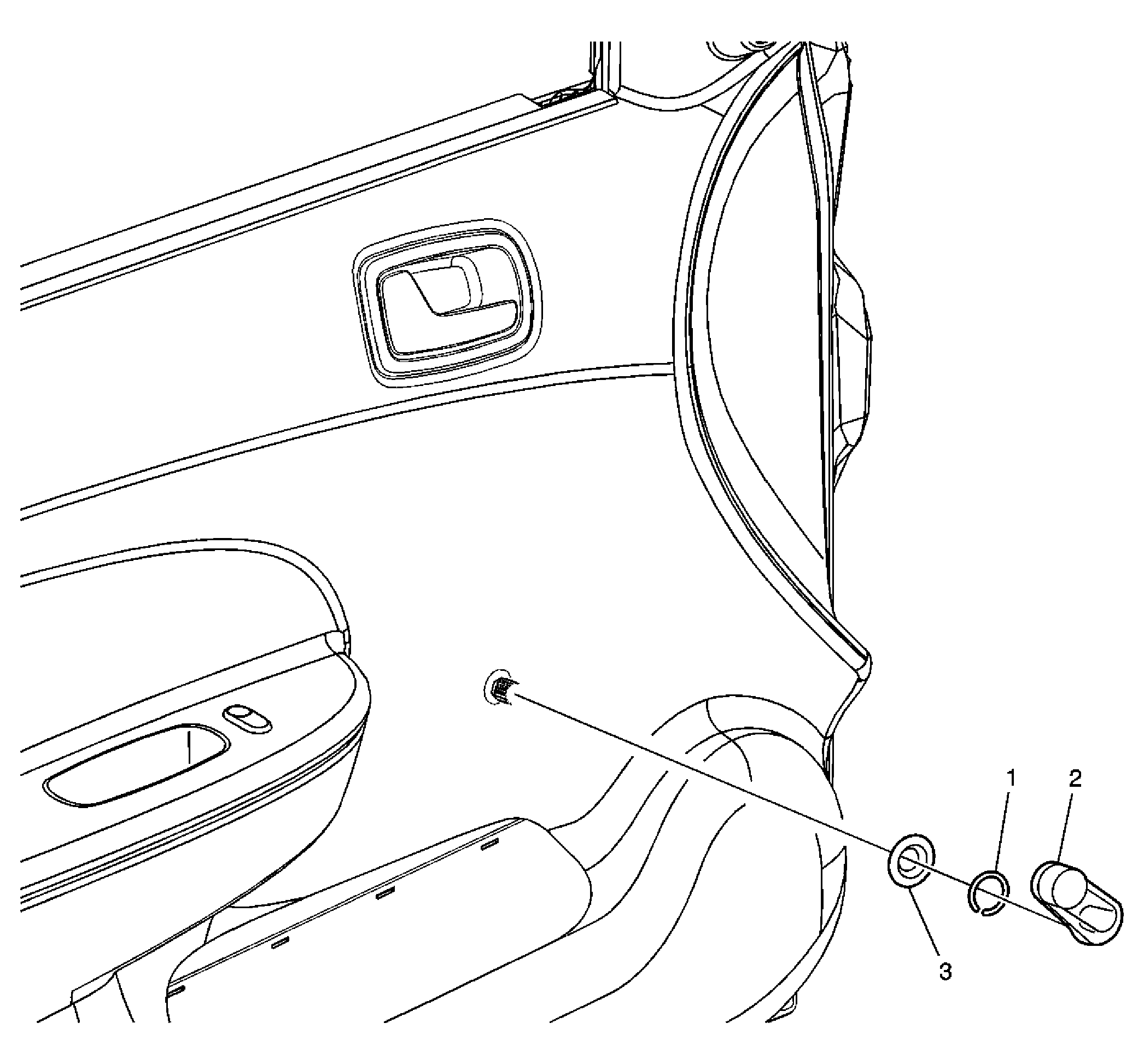

Fig 1: Window Regulator Handle Replacement - Door
GM1538059Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Retainer Clip
2 Window Regulator Crank
Tip:  Use the J 9886-01  Door Handle Clip Remover to remove the crank handle.
3 Window Regulator Washer
