Radio Antenna Coil Replacement
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
Radio Antenna Coil Replacement

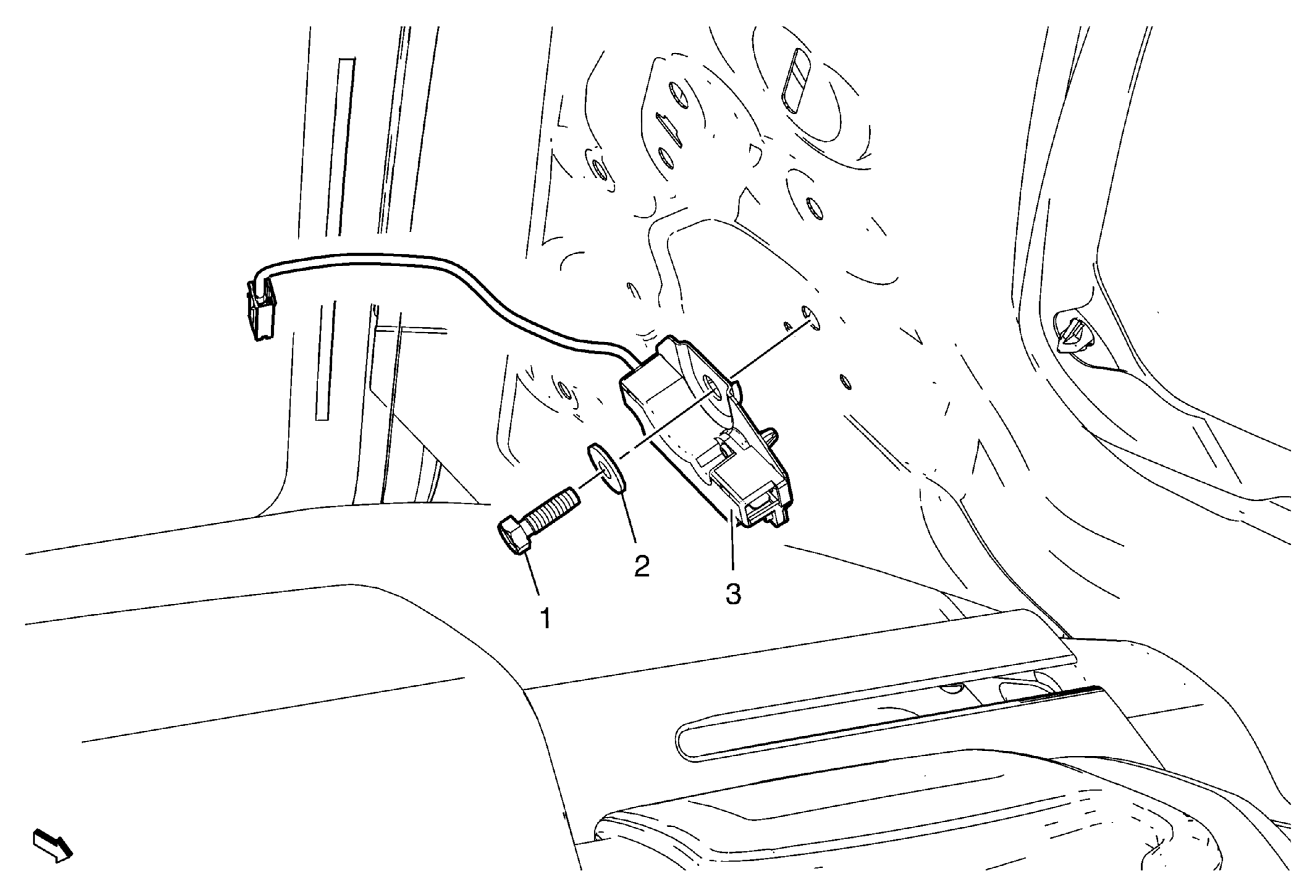

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove left body lock pillar trim panel. Refer to Body Lock Pillar Trim Panel Replacement (without Roof Side Rail Airbag) , Body Lock Pillar Trim Panel Replacement (with Roof Side Rail Airbag) . |
|
| 1 | Radio Antenna Coil Bolt
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m (71 lb in) |
| 2 | Radio Antenna Coil Washer |
| 3 | Radio Antenna Coil Procedure Disconnect electrical components. |
