Rear Windows

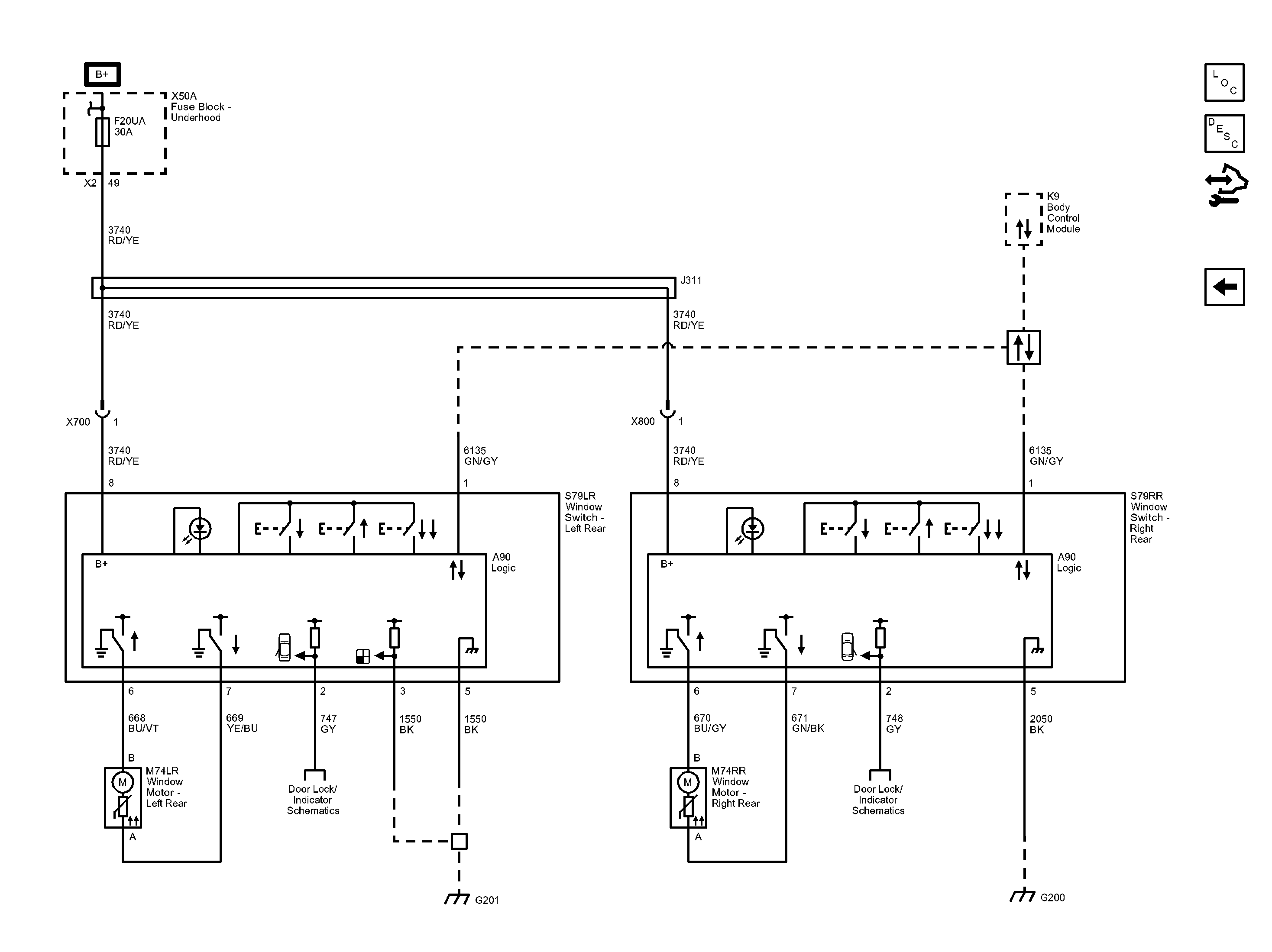

Fig 1: Moveable Window Wiring Schematic - Rear Windows

GM2851796

Courtesy of GENERAL MOTORS COMPANY
