Rear Side Door Window Regulator Motor Replacement

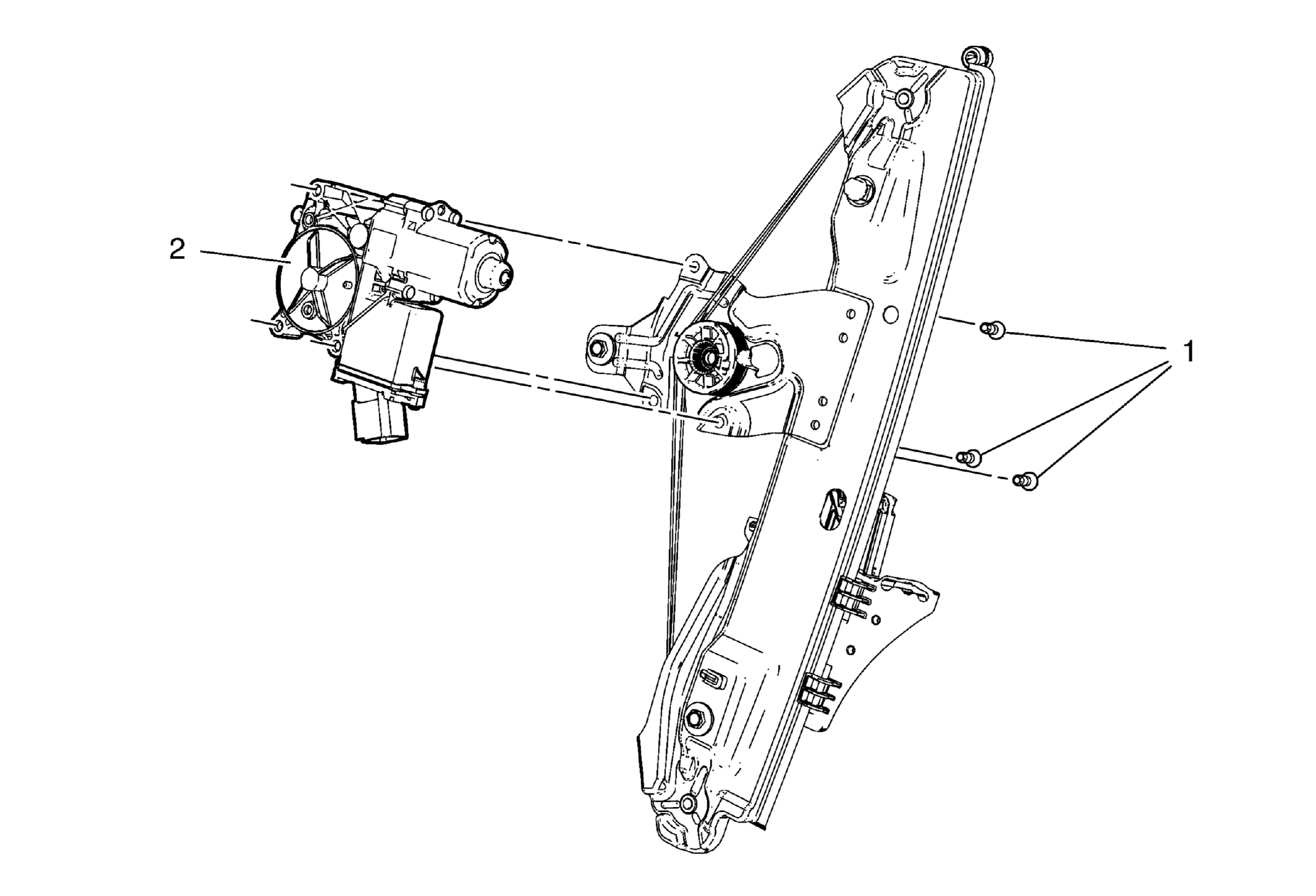

Fig 1: Rear Side Door Window Regulator Motor & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side Door Window Regulator. Refer to Rear Side Door Window Regulator Replacement .
1	Rear Side Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Side Door Window Regulator Motor Assembly
