Removal Procedure

  1. Remove front compartment fuse block. Refer to Front Compartment Fuse Block Replacement .
  2. Remove windshield washer solvent container filler tube.

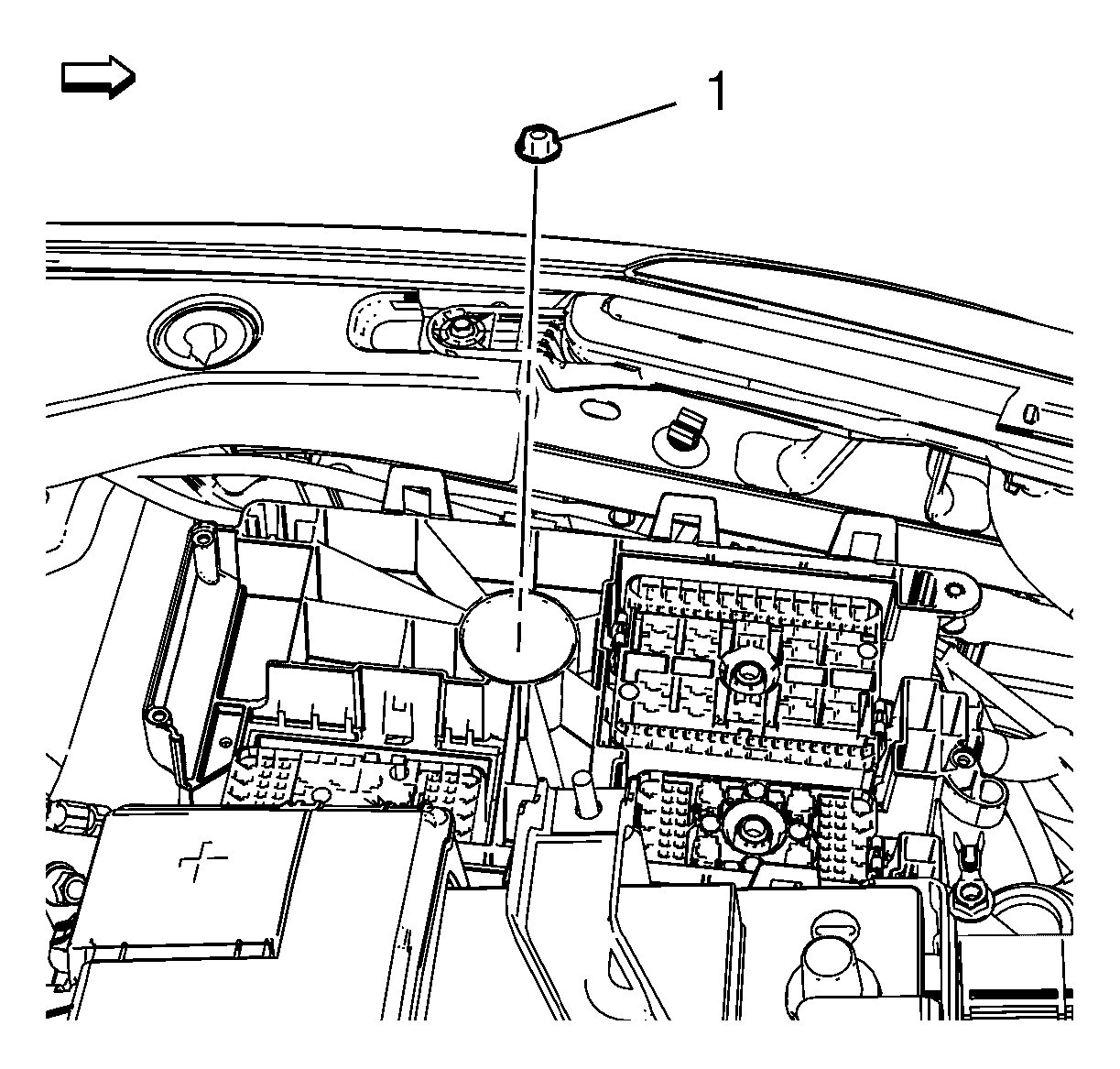

    3. Fig 1: Front Compartment Fuse Block Housing Nut
    GM2027644Courtesy of GENERAL MOTORS COMPANY
  3. Remove front compartment fuse block housing nut (1).
  4. Remove front compartment fuse block housing.
    • Remove 3 connector from front compartment fuse block housing
    • Remove attaching parts.
