Powertrain High Speed GMLAN (LHU/LAF/LDK)

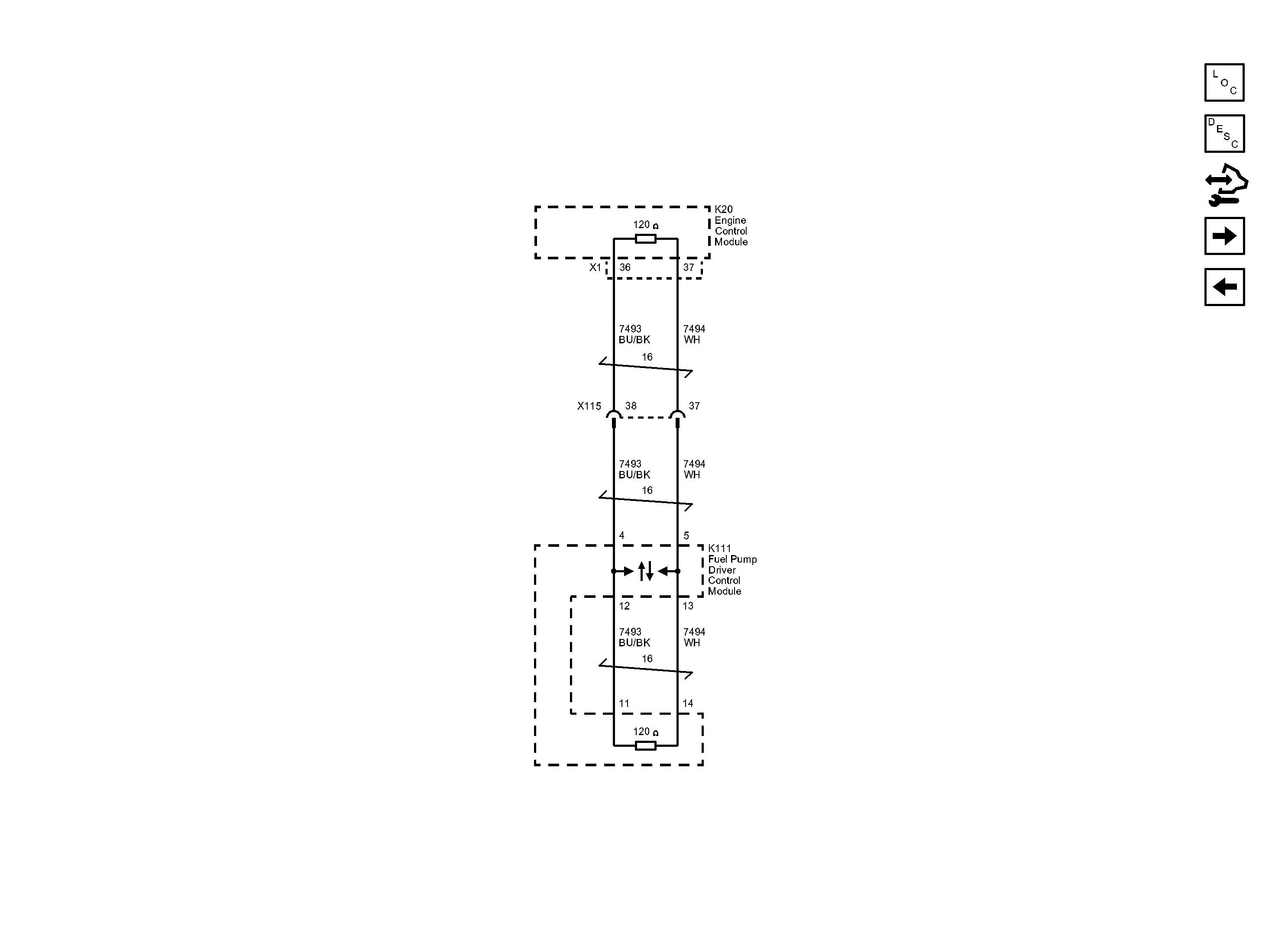

Fig 1: Powertrain High Speed GMLAN Wiring Schematic (LHU/LAF/LDK)

GM2912220

Courtesy of GENERAL MOTORS COMPANY
