Chassis High Speed GMLAN (CZ2)

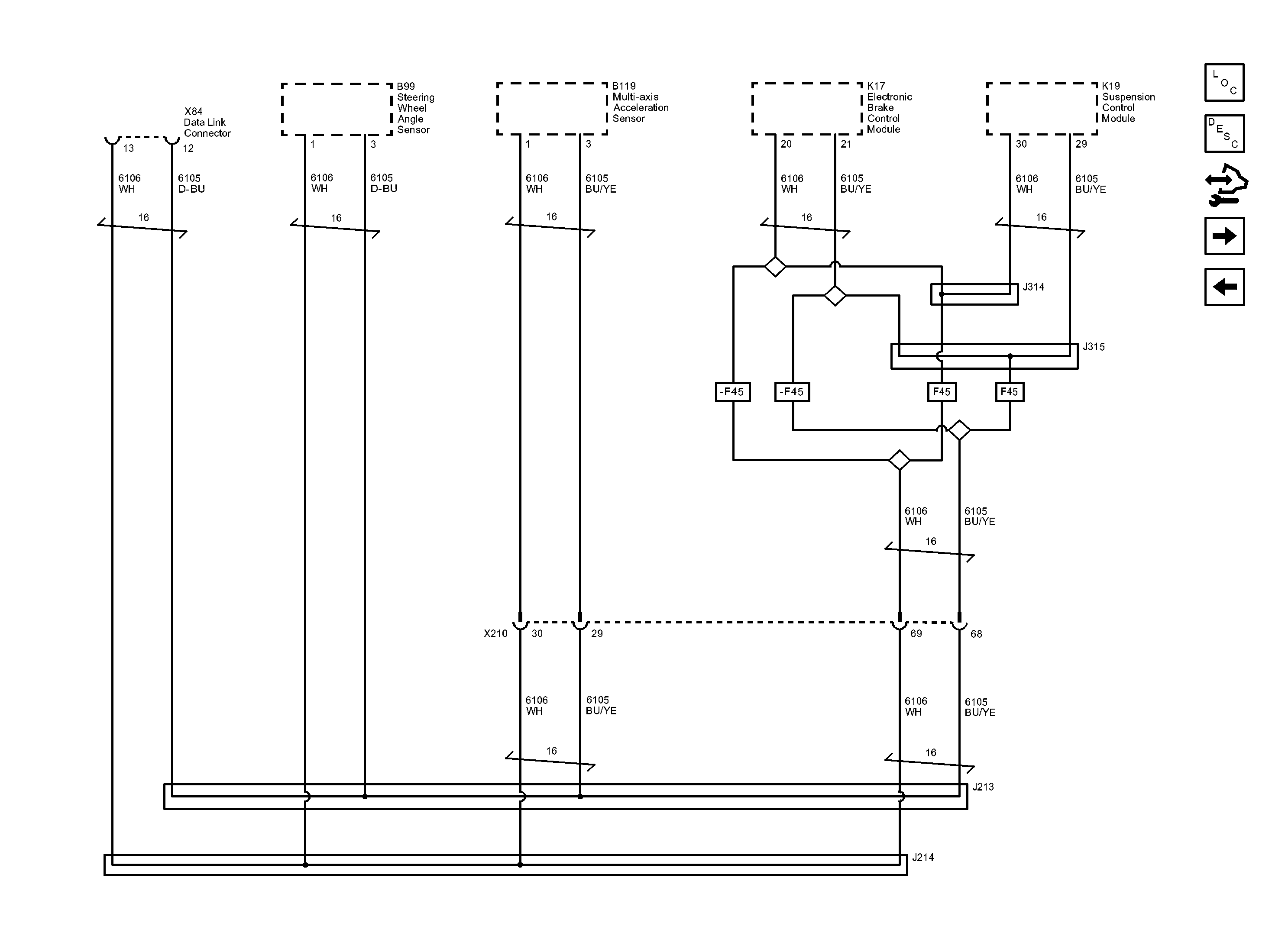

Fig 1: Chassis High Speed GMLAN Wiring Schematic (CZ2)

GM2912580

Courtesy of GENERAL MOTORS COMPANY
