Generator Bracket Replacement (L4)

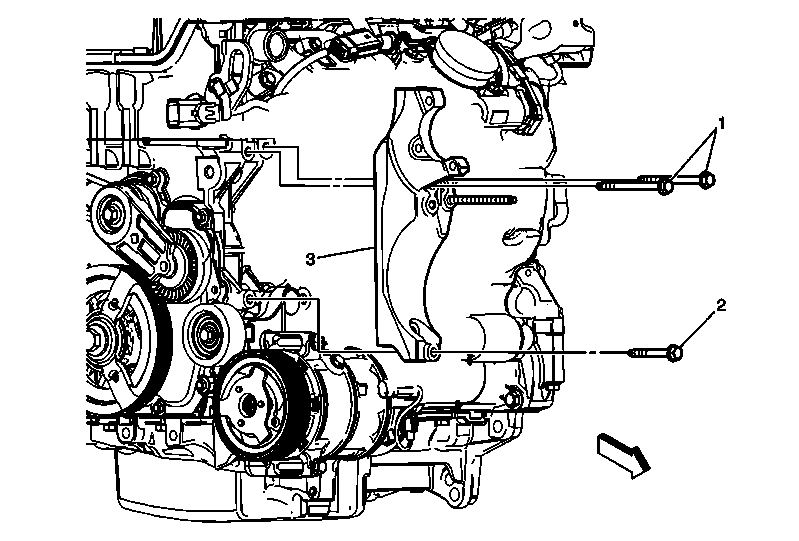

Fig 1: Generator Bracket Replacement (L4)
GM2212057Courtesy of GENERAL MOTORS COMPANY
Generator Bracket Replacement (L4)

Callout Component Name

Preliminary Procedures

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the drive belt. Refer to Drive Belt Replacement (LEA) , Drive Belt Replacement (LUK)
  3. Remove the power steering pump. Refer to Power Steering Pump Replacement .
1 Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Procedure
Disconnect the generator electrical connector.
Tighten
22 N.m (16 lb ft)
2 Bolt (Qty: 1)
Tighten
22 N.m (16 lb ft)
3 Generator Bracket
