Module Power, Ground, and Subsystem References

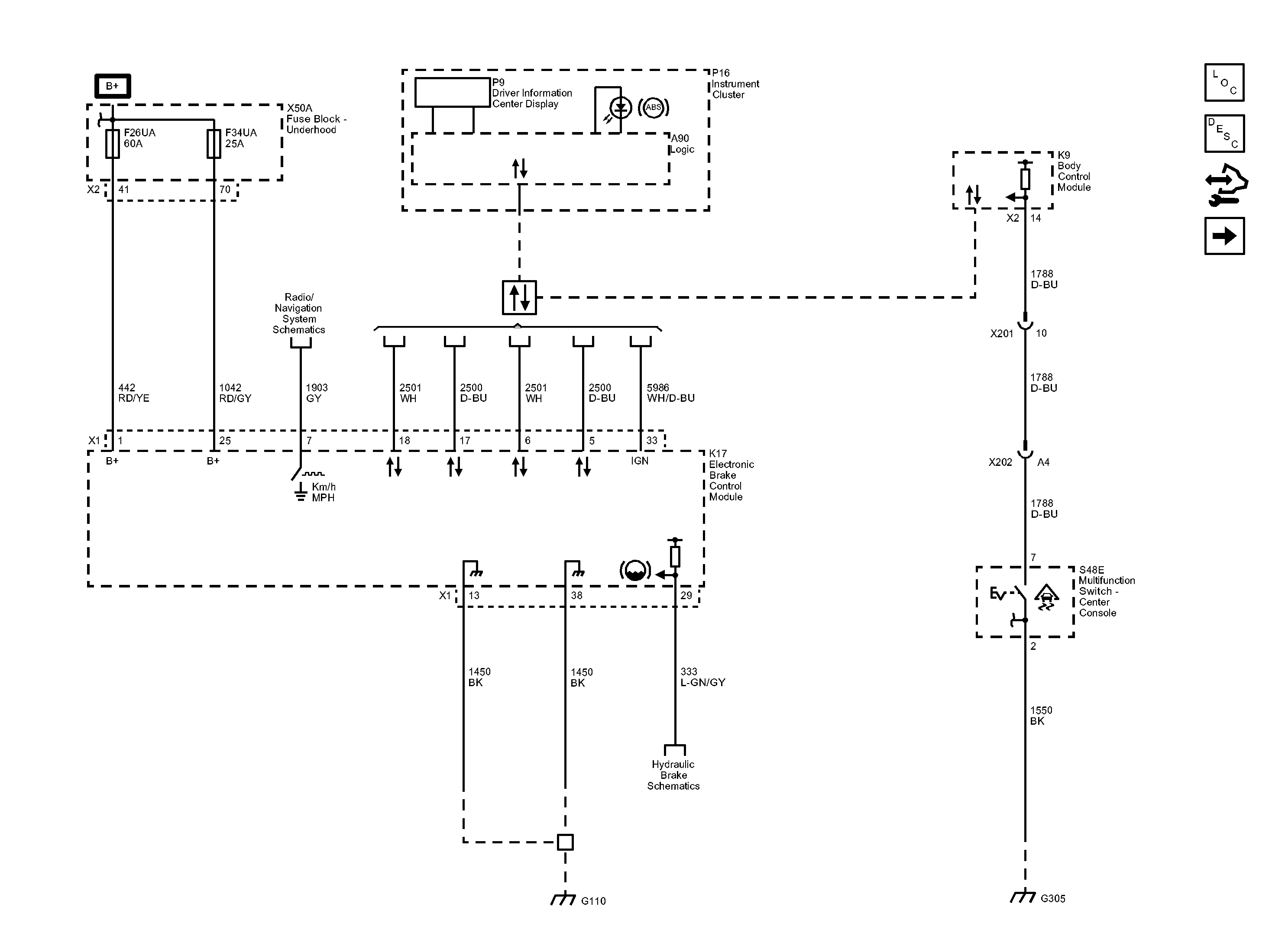

Fig 1: Module Power, Ground, and Subsystem References Wiring Schematic

GM2808360

Courtesy of GENERAL MOTORS COMPANY
