Floor Console Components (North America)

Items
1: X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 X83 Auxiliary Audio Input X2 (KTA or USR)
2: X80A Accessory Power Receptacle - Center Console 1 X80A Accessory Power Receptacle - Center Console 1
3: E28 Center Console Compartment Lamp E28 Center Console Compartment Lamp
4: E1T Accent Lamp - Center Console Armrest Left E1T Accent Lamp - Center Console Armrest Left
5: E1U Accent Lamp - Center Console Armrest Right E1U Accent Lamp - Center Console Armrest Right
6: E1S Accent Lamp - Center Console Cupholder Right E1S Accent Lamp - Center Console Cupholder Right
7: K89 Immobilizer Control Module (BTM) K89 Immobilizer Control Module (BTM)K89 Immobilizer Control Module (without BTM)
8: T10K Keyless Entry Antenna - Center Console Rear (BTM) T10K Keyless Entry Antenna - Center Console Rear (BTM)
9: T1 Accessory DC/AC Power Inverter Module (KI6) T1 Accessory DC/AC Power Inverter Module (K16)
10: X81 Accessory Power Receptacle - 110V AC (K16) X81 Accessory Power Receptacle 110V AC X1 (K16)X81 Accessory Power Receptacle 110V AC X2 (K16)
11: X82 Audio/Video Input Adapter (UWG) X82 Audio/Video Input Adapter (UWG)
12: X80B Accessory Power Receptacle - Center Console 2 X80B Accessory Power Receptacle - Center Console 2
13: E1Q Accent Lamp - Center Console Cupholder Left E1Q Accent Lamp - Center Console Cupholder Left

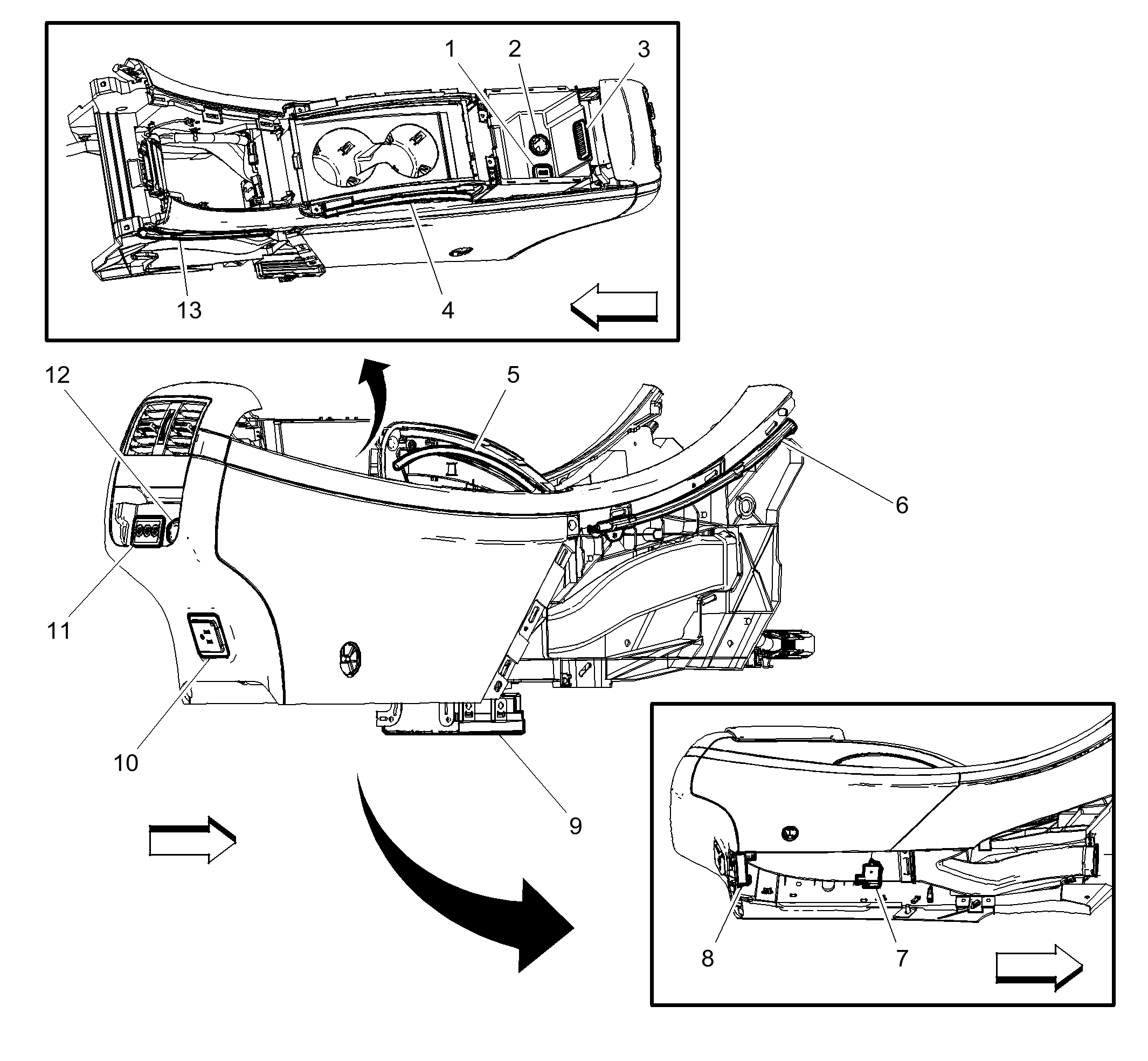

Fig 1: Floor Console (North America)

Courtesy of GENERAL MOTORS COMPANY
