Module Power, Ground, Serial Data And Seat Memory Switch (A45)

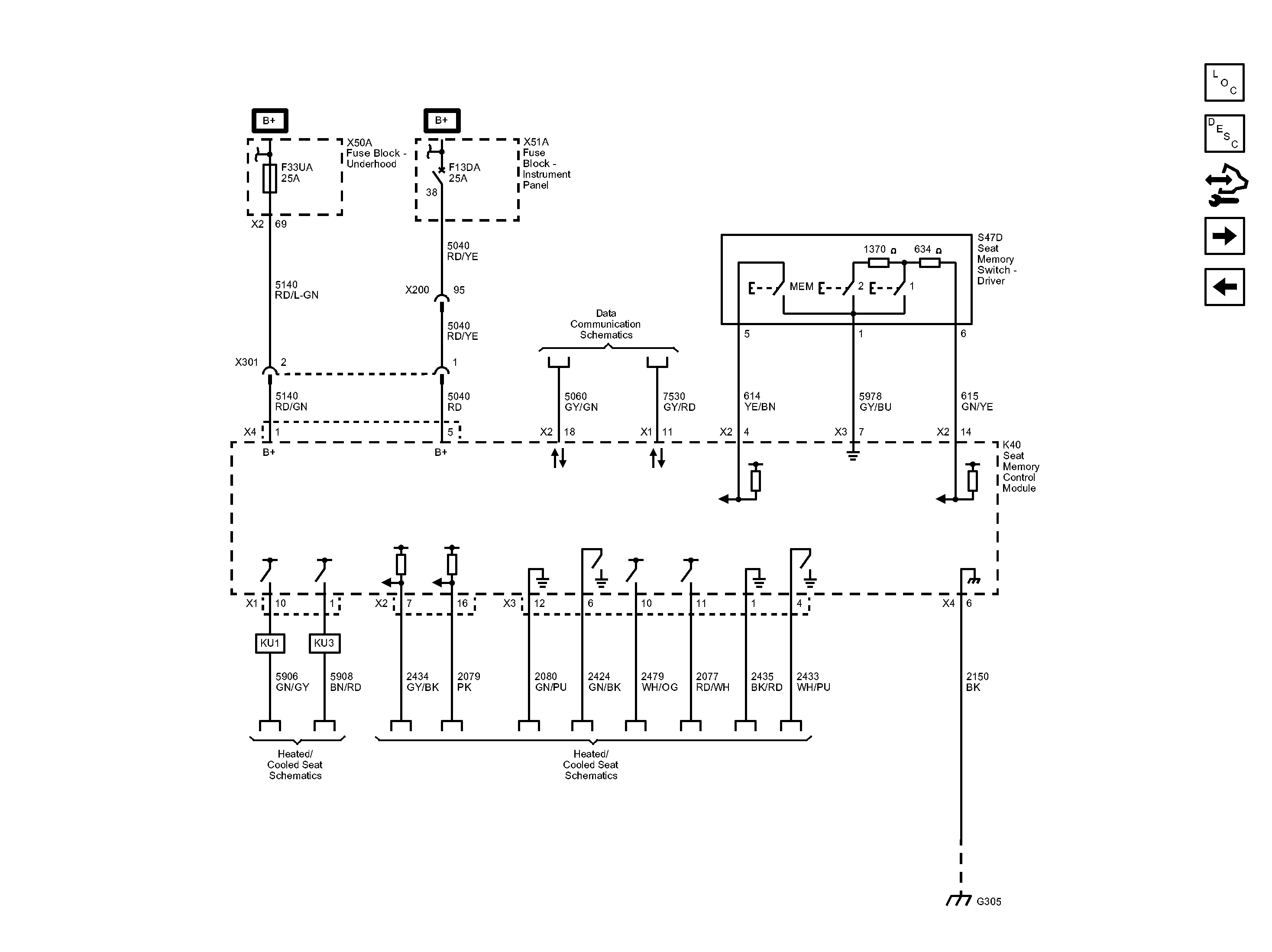

Fig 1: Module Power, Ground, Serial Data And Seat Memory Switch (A45) Wiring Schematic

GM2809017

Courtesy of GENERAL MOTORS COMPANY
