Driver Switch And Indicator

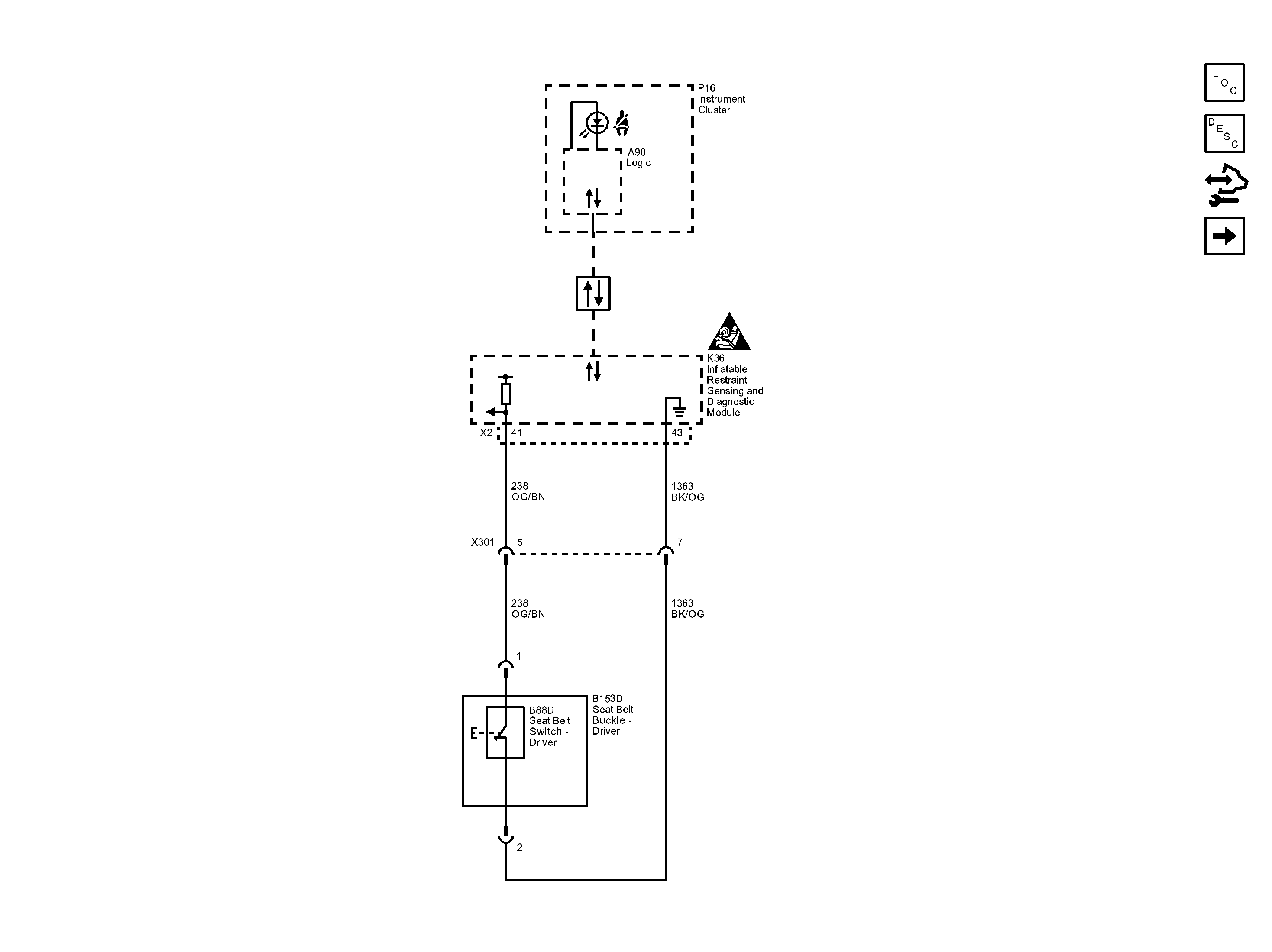

Fig 1: Driver Switch And Indicator Wiring Schematic

GM2882221

Courtesy of GENERAL MOTORS COMPANY
