G103 And G104

G103 And G104

Items
1: G104
2: G103

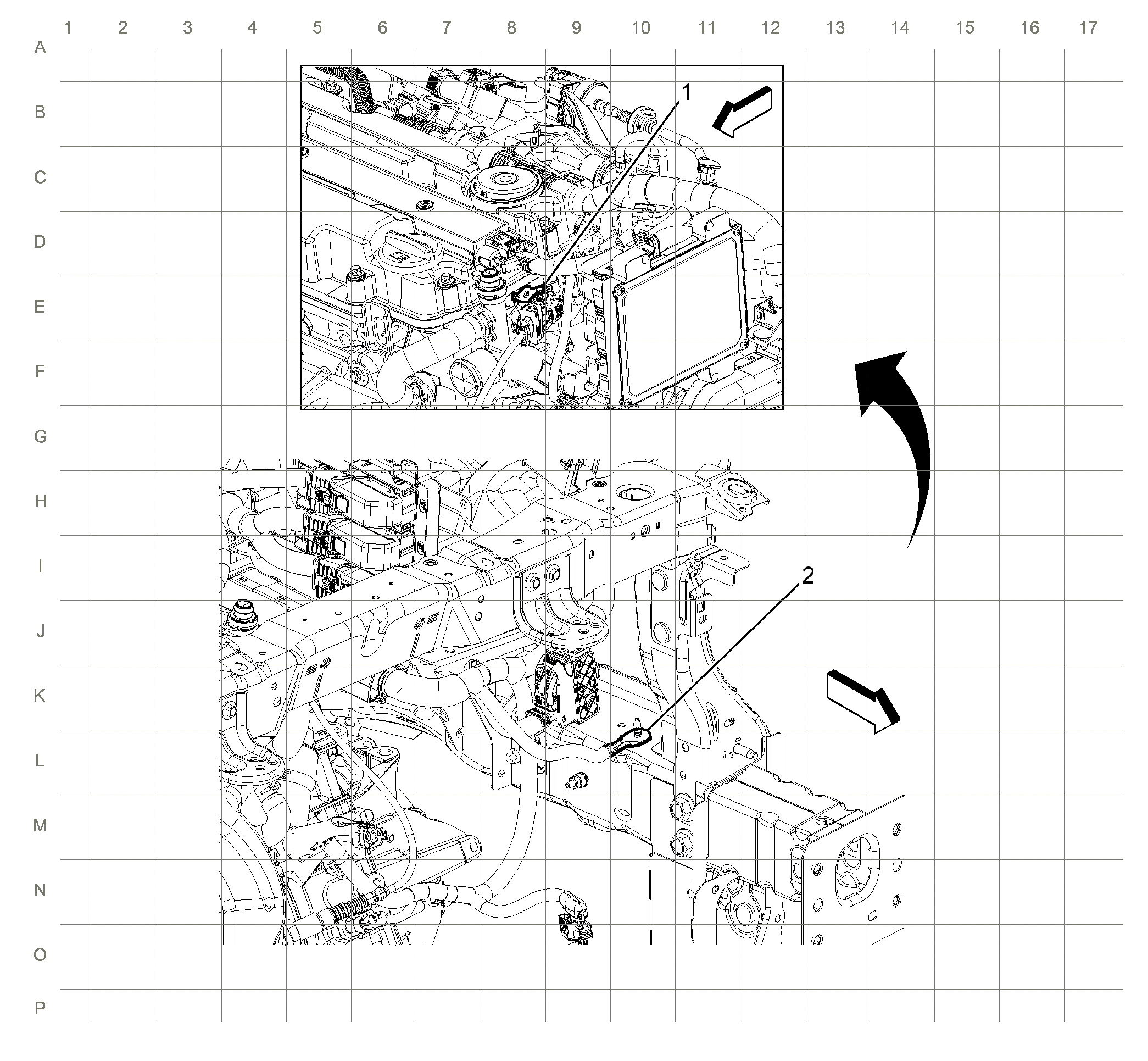

Fig 1: G103 And G104

GM2839748

Courtesy of GENERAL MOTORS COMPANY
