Sun Load Temperature Sensor Bezel Replacement (Encore)
WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

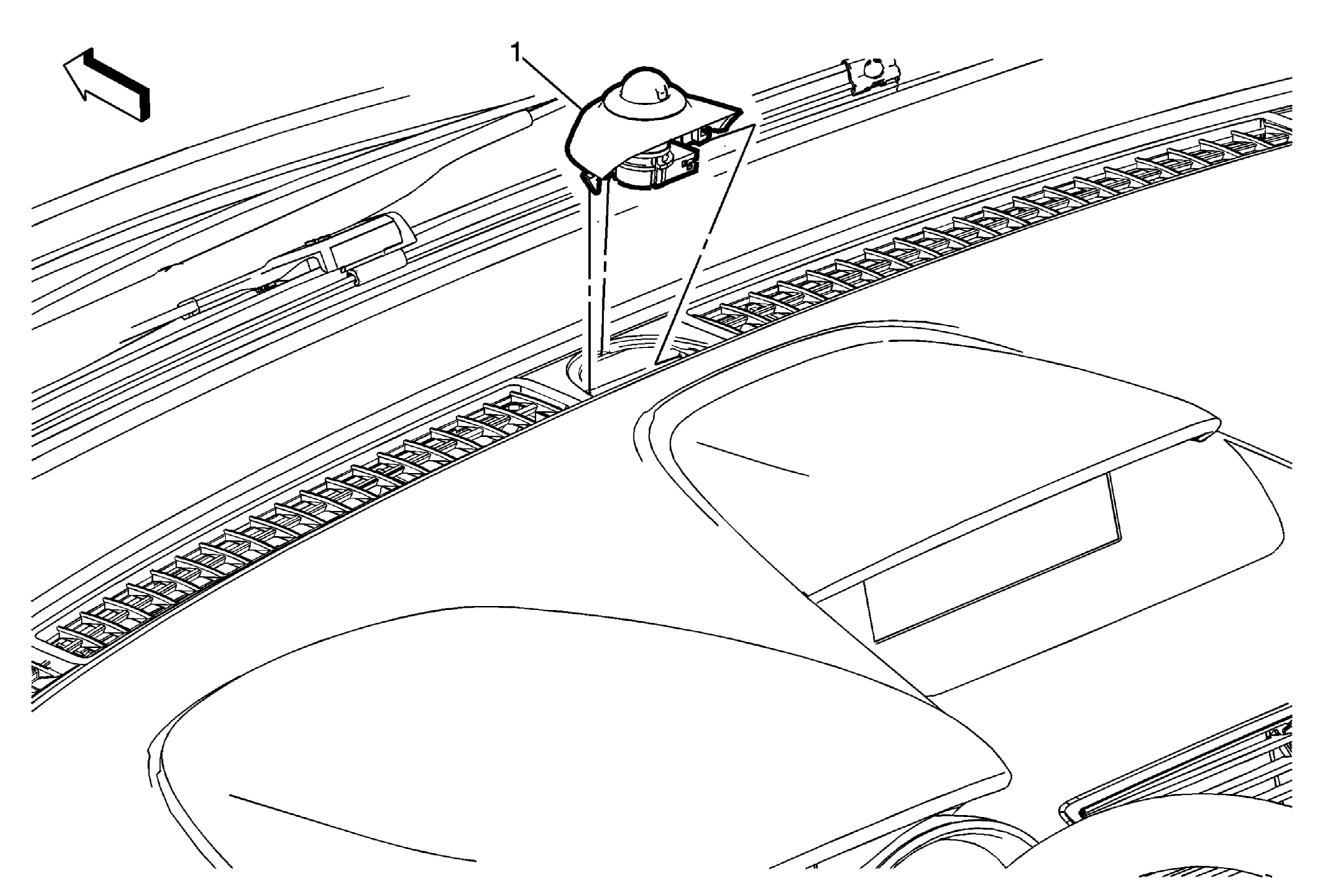

| Callout |
Component Name |
| 1 |
Sun Load Temperature Sensor Bezel Procedures
- Use a flat bladed plastic trim tool to aid in the removal of the sensor bezel from the instrument panel assembly.
- Disconnect the electrical connections.
- Transfer all necessary components.
|
