Temperature Control Cable Replacement (C60)
WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

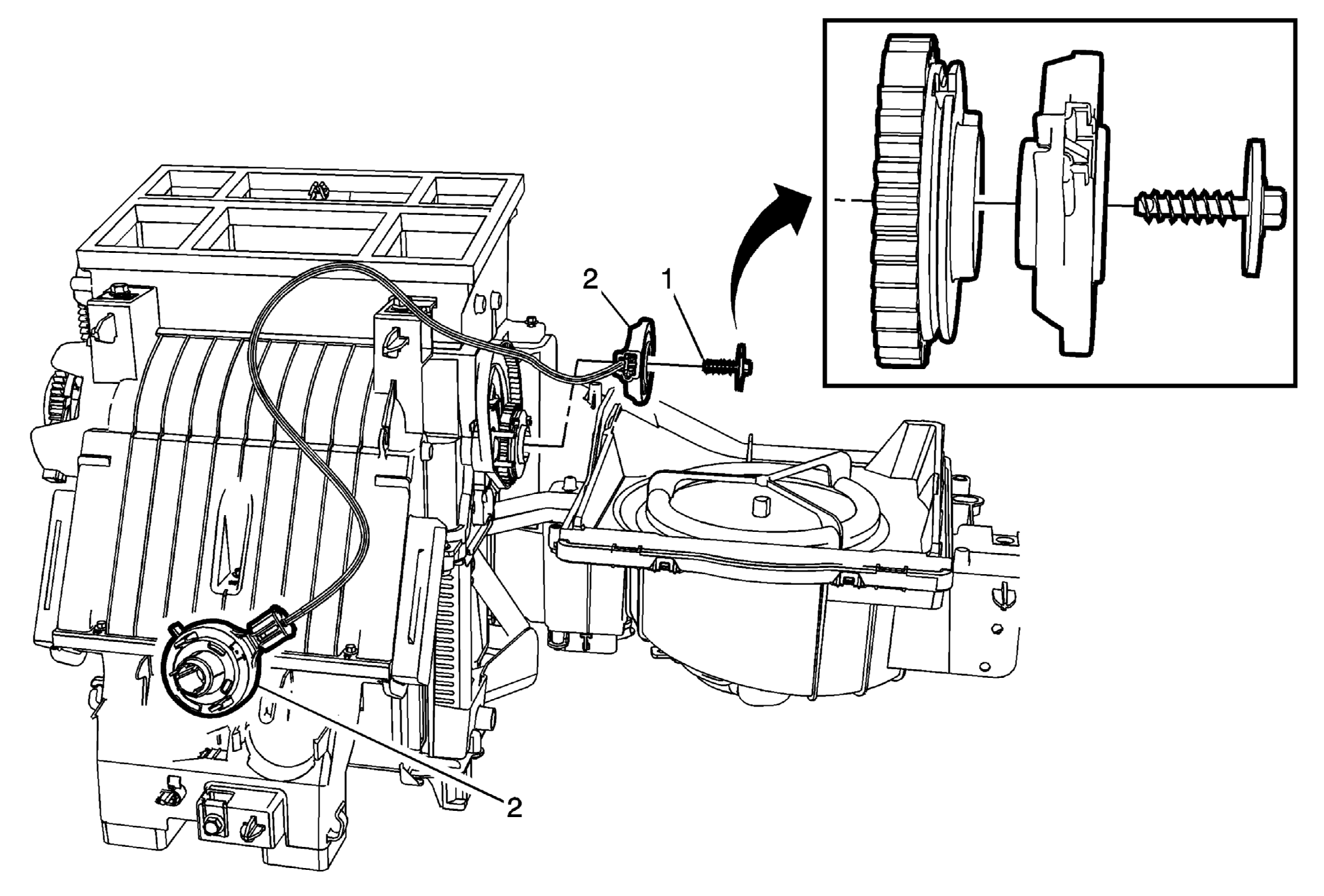

| Call out | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Trax) . |
|
| 1 | Temperature Control Cable Retaining Screw
CAUTION:
Refer to Fastener Caution . Tighten 2.0 N.m (18 lb in) |
| 2 | Temperature Control Cable Procedure Index the temperature valve gears and temperature control cable end gear. Refer to Temperature Valve Gear Replacement (C60) . |
