Mode Control Cam Replacement (C60)

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

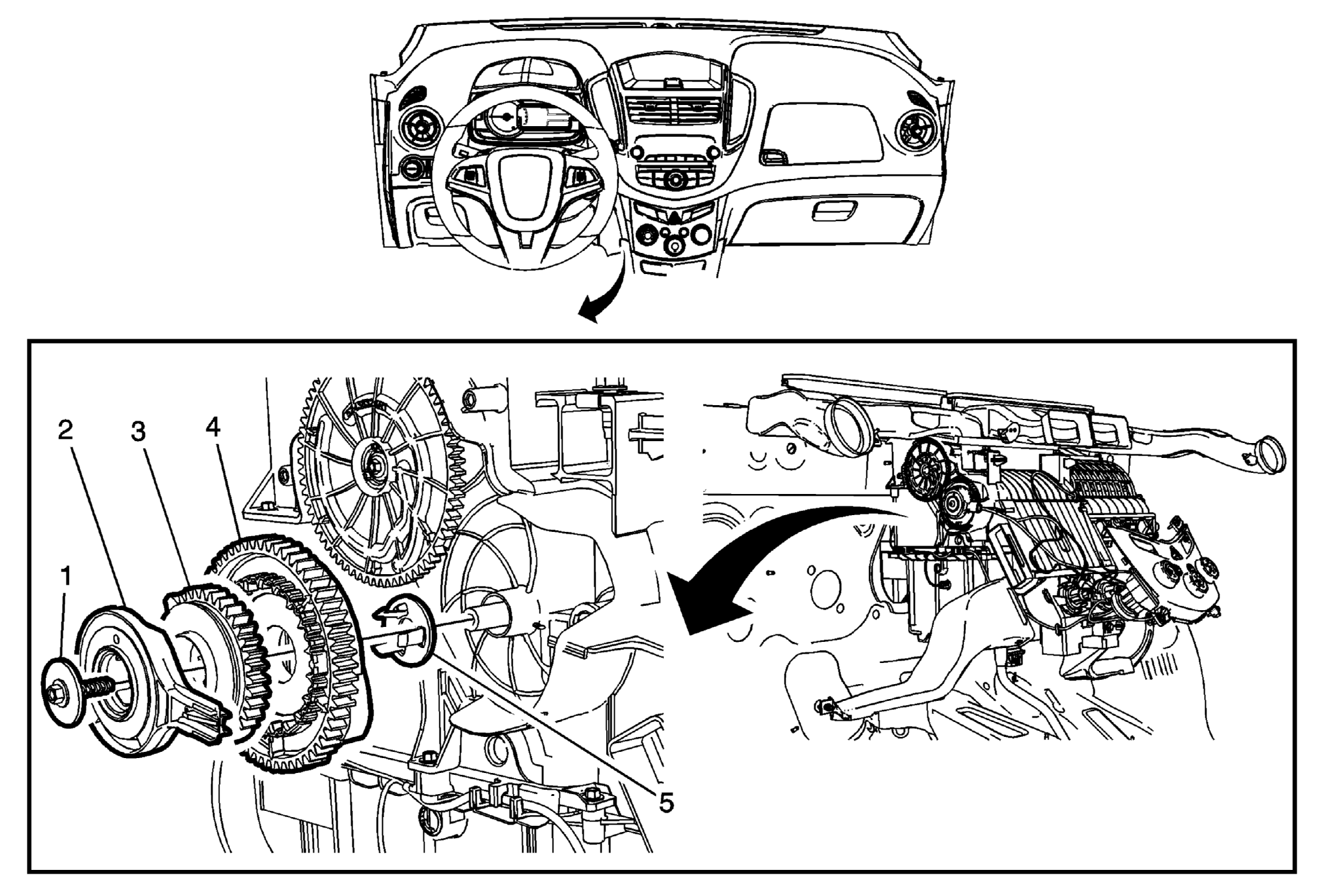

Fig 1: Mode Control Cam (C60)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement . Remove the driver side inflatable restraint instrument panel lower module. Refer to Instrument Panel Lower Airbag Replacement - Driver Side (AYF) . Remove the left front floor duct. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Trax) .
1	Heater and A/C Control Mode Cam Screw CAUTION: Refer to Fastener Caution .
2	Heater and A/C Control Mode Cable
3	Heater and A/C Control Mode Cam Inner Gear
4	Heater and A/C Control Mode Cam Outer Gear
5	Heater and A/C Control Mode Cam Inner Gear Retainer
