Mode Control Cable Replacement (C60)

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

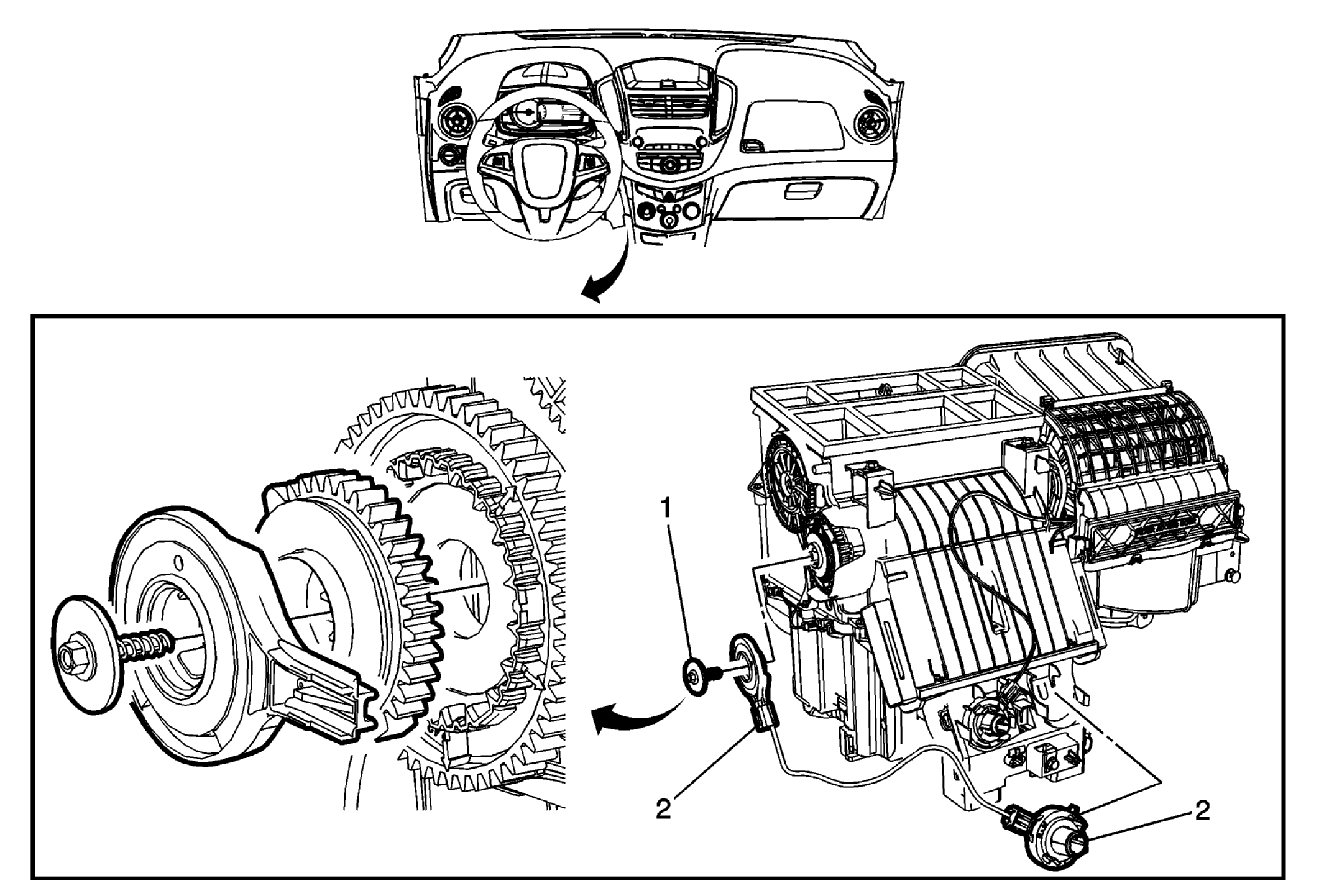

Fig 1: Mode Control Cable (C60)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement Remove the driver side instrument panel lower air bag assembly, if equipped. Refer to Instrument Panel Lower Airbag Replacement - Driver Side (AYF) Remove the left floor duct. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Trax)
1	Mode Control Cable Retaining Screw CAUTION: Refer to Fastener Caution .
2	Mode Control Cable Procedure Perform the mode control cam gear alignment procedure. Refer to Mode Control Cam Alignment (C60) .

Callout

Component Name

Preliminary Procedures

Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement
Remove the driver side instrument panel lower air bag assembly, if equipped. Refer to Instrument Panel Lower Airbag Replacement - Driver Side (AYF)
Remove the left floor duct. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Trax)

Mode Control Cable Retaining Screw

CAUTION:

Refer to Fastener Caution .

Mode Control Cable
Procedure
Perform the mode control cam gear alignment procedure. Refer to Mode Control Cam Alignment (C60) .
