Tail Lamp Replacement (Trax)

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

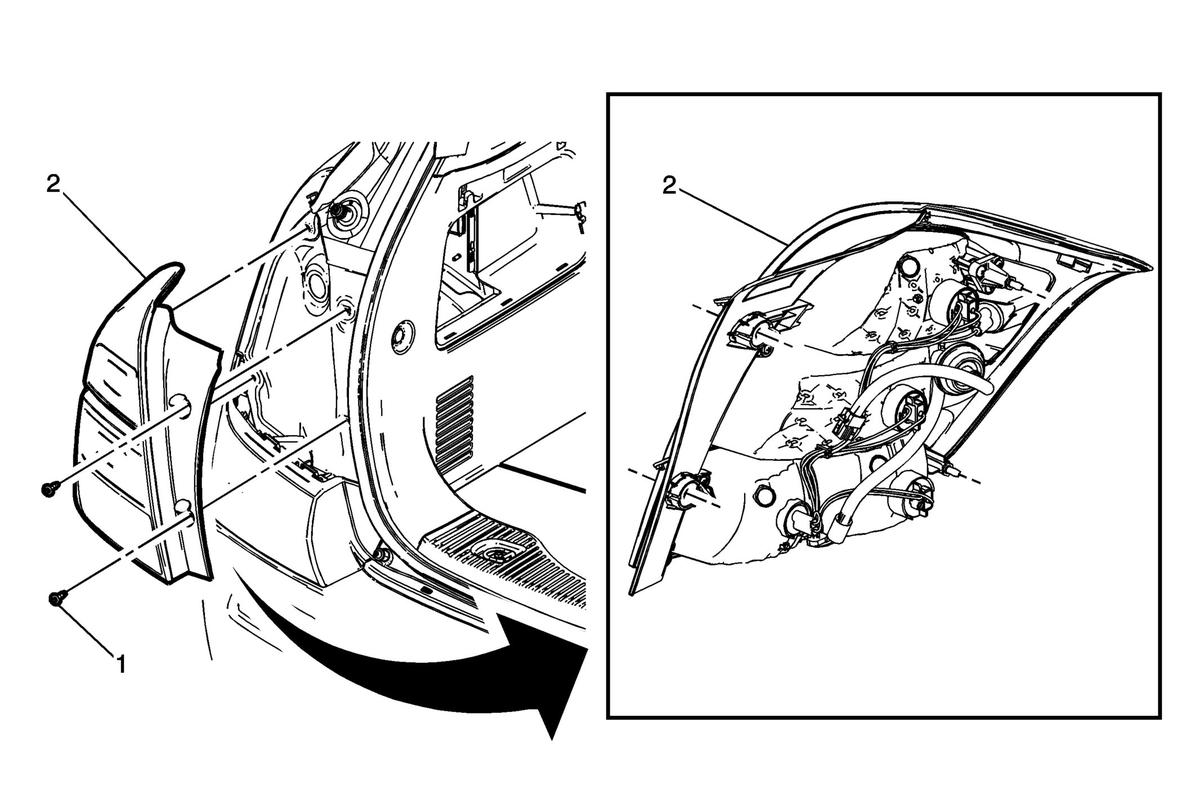

Fig 1: Tail Lamp (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open and support the liftgate. Remove quarter stowage pocket door. Refer to Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side) .
1	Tail Lamp Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Tail Lamp Procedure Hold both sides of the tail lamp and carefully pull the lamp reward in order to disengage the two locator pins and the retainer from the bodyside outer frame. Disengage the tail lamp harness grommet. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Open and support the liftgate.
Remove quarter stowage pocket door. Refer to Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side) .

Tail Lamp Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Tail Lamp

Procedure

Hold both sides of the tail lamp and carefully pull the lamp reward in order to disengage the two locator pins and the retainer from the bodyside outer frame.
Disengage the tail lamp harness grommet.
Disconnect the electrical connector.
