Front Fog Lamp Replacement (Trax)

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

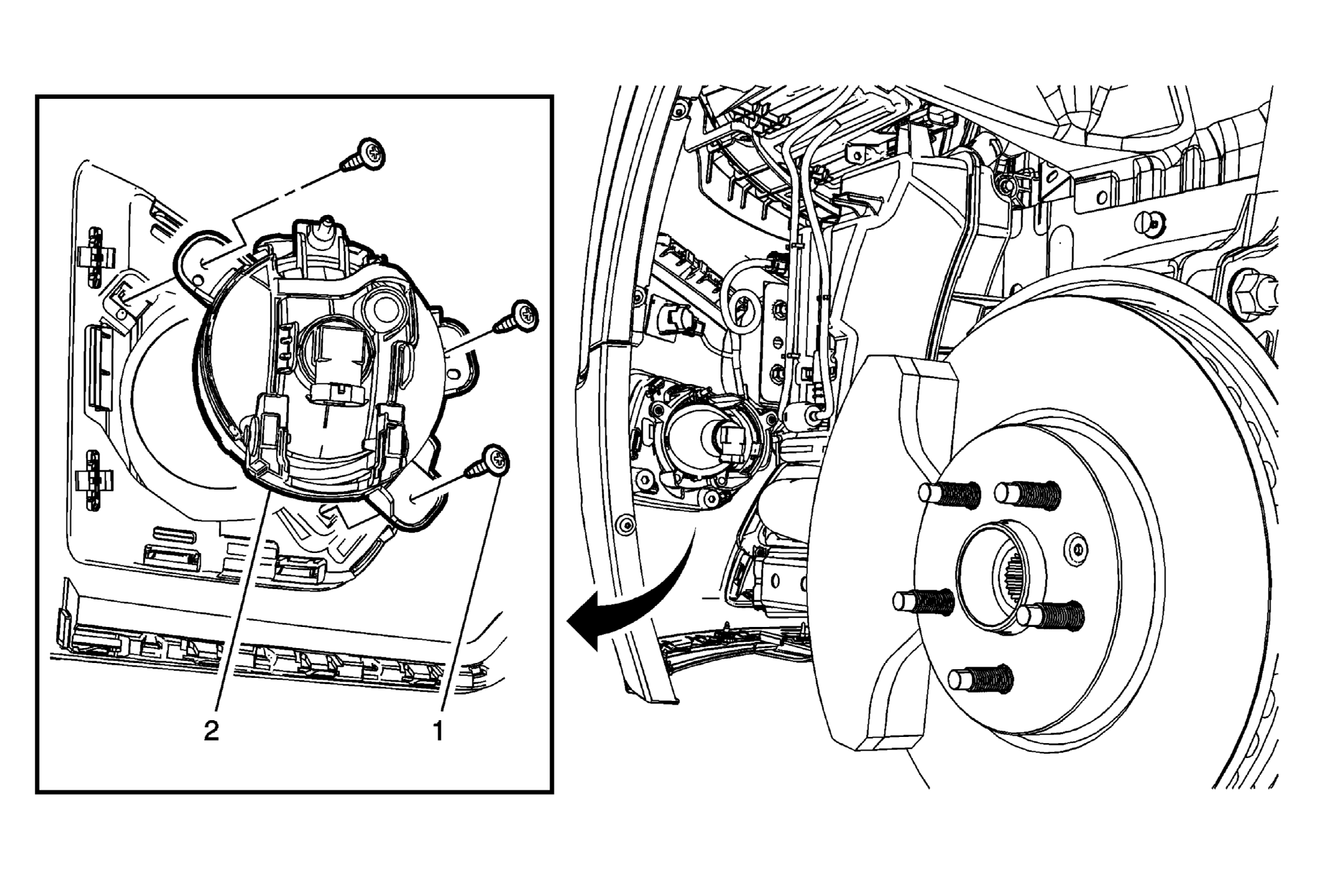

Fig 1: Front Fog Lamp (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning . Preliminary Procedures Remove either the right front or left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Trax) . Disconnect the electrical connector from the fog lamp bulb socket.
1	Front Fog Lamp Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove the three fog lamp mounting screws from the front bumper fascia. Tighten 2 N.m (18 lb in)
2	Front Fog Lamp Procedure Transfer parts as necessary. Aim the front fog lamps after replacement. Refer to Fog Lamp Aiming .

Callout

Component Name

WARNING:

Refer to Halogen Bulb Warning .

Preliminary Procedures

Remove either the right front or left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Trax) .
Disconnect the electrical connector from the fog lamp bulb socket.

Front Fog Lamp Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Procedure
Remove the three fog lamp mounting screws from the front bumper fascia.
Tighten
2 N.m (18 lb in)

Front Fog Lamp

Procedure

Transfer parts as necessary.
Aim the front fog lamps after replacement. Refer to Fog Lamp Aiming .
