Windshield Wiper and Washer Switch Replacement (Encore)

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

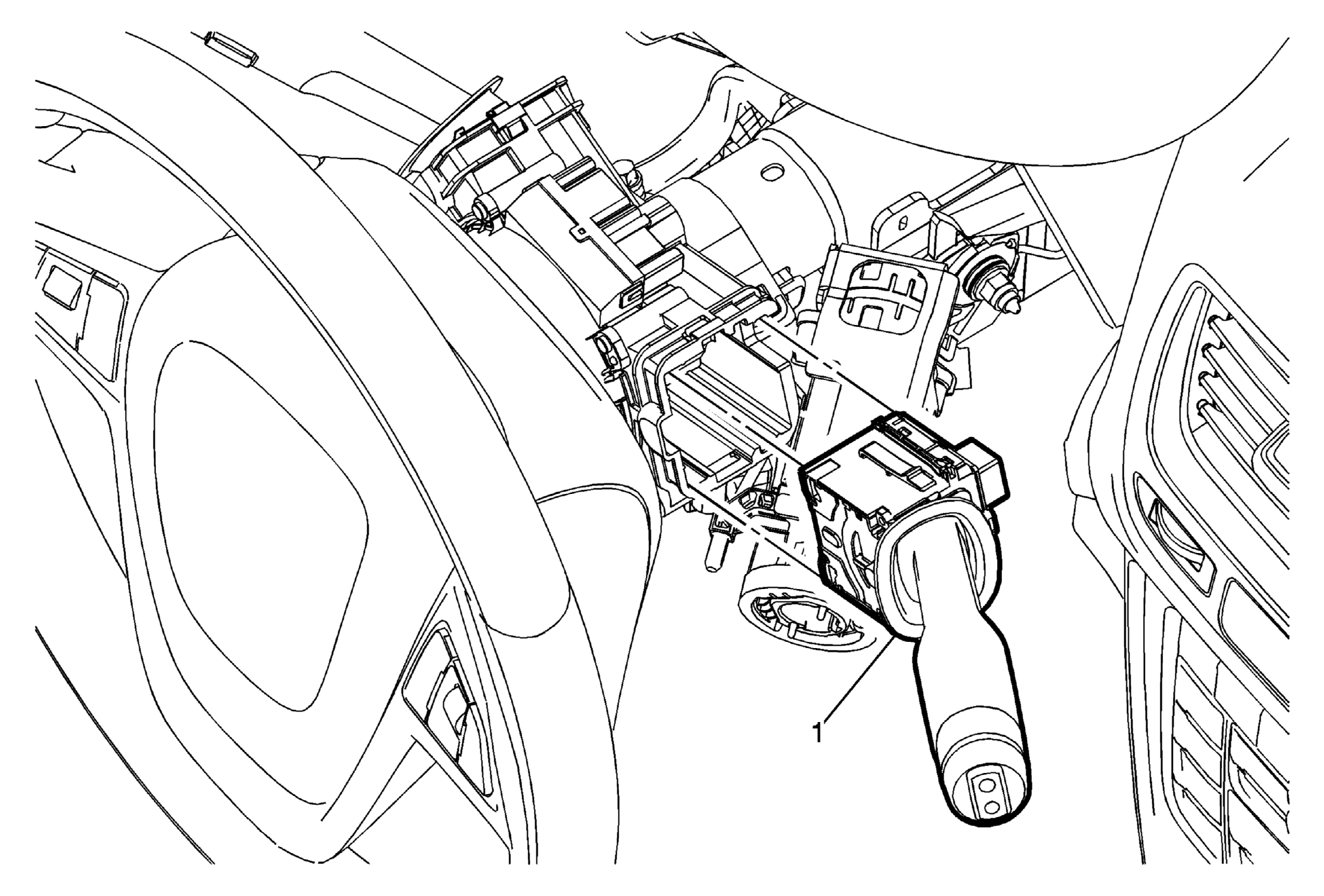

Fig 1: Windshield Wiper And Washer Switch (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Ignition Lock Cylinder Opening Cover Replacement (Encore)
1	Windshield Wiper and Washer Switch Procedure Disconnect the electrical connector. Release the retaining tabs and remove the windshield wiper and washer switch from the turn signal switch bracket.

Callout

Component Name

Preliminary Procedure
Ignition Lock Cylinder Opening Cover Replacement (Encore)

Windshield Wiper and Washer Switch

Procedure

Disconnect the electrical connector.
Release the retaining tabs and remove the windshield wiper and washer switch from the turn signal switch bracket.
