Windshield Washer Solvent Container Hose Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

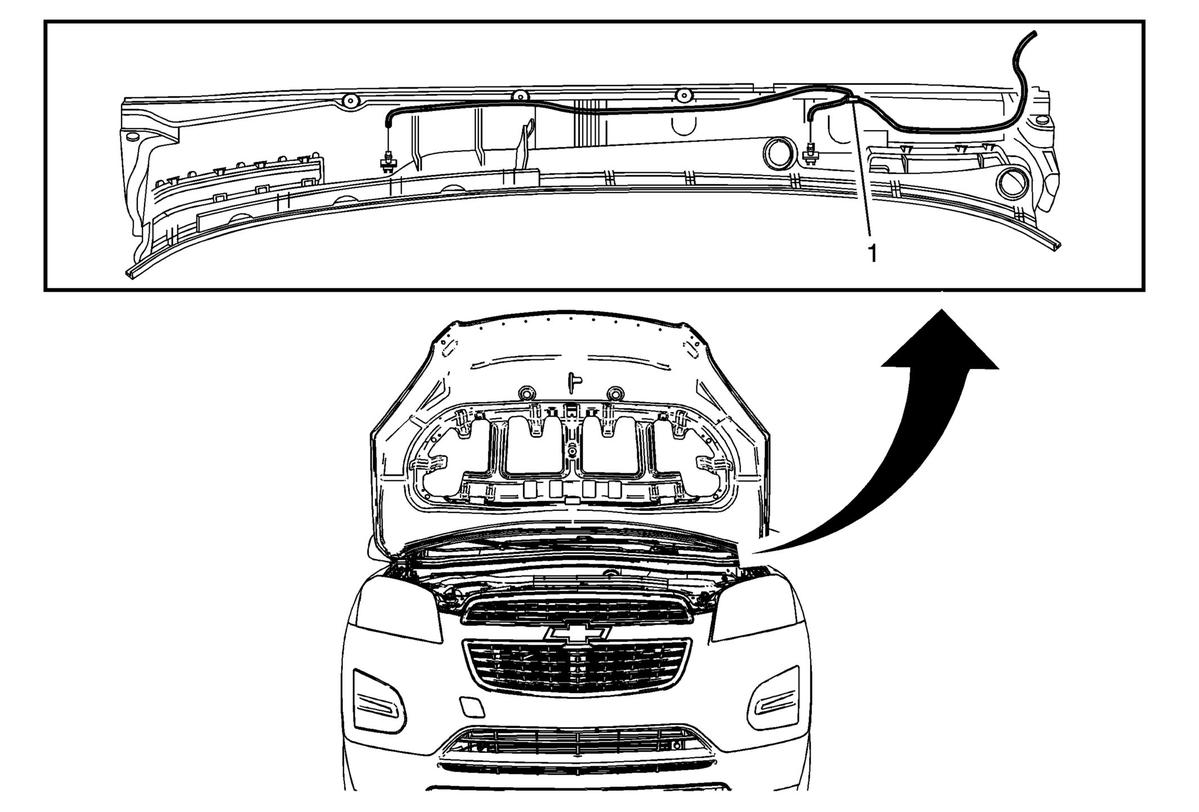

Fig 1: Windshield Washer Solvent Container Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Trax) Air Inlet Grille Panel Replacement (Encore) .
1	Windshield Washer Solvent Container Hose Assembly Procedure Disconnect the windshield washer solvent container hose from the windshield washer pump hose. Disconnect the windshield washer solvent container hose from the windshield washer nozzle. Disengage the windshield washer solvent container hose from the retainers on the air inlet grille. Remove the windshield washer solvent container hose from the vehicle.

Callout

Component Name

Preliminary Procedure
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Trax) Air Inlet Grille Panel Replacement (Encore) .

Windshield Washer Solvent Container Hose Assembly

Procedure

Disconnect the windshield washer solvent container hose from the windshield washer pump hose.
Disconnect the windshield washer solvent container hose from the windshield washer nozzle.
Disengage the windshield washer solvent container hose from the retainers on the air inlet grille.
Remove the windshield washer solvent container hose from the vehicle.
