Windshield Washer Solvent Container Filler Tube Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

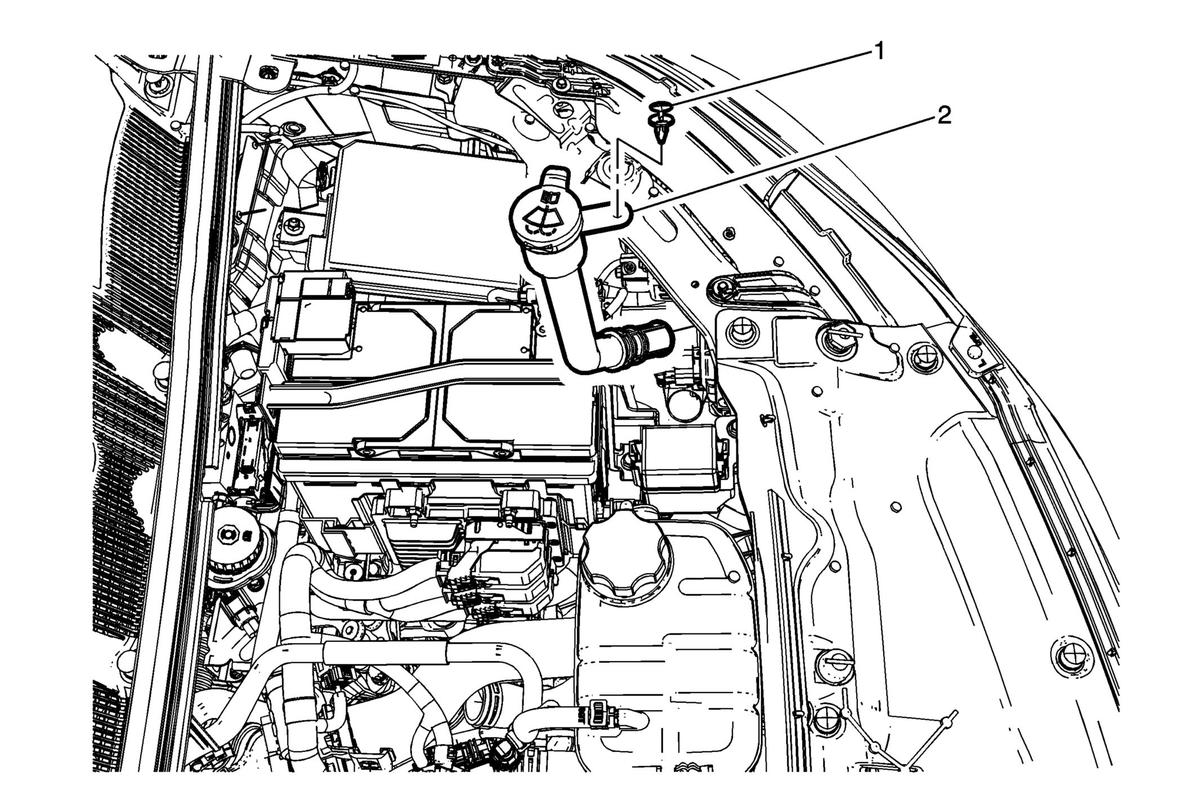

| Callout |
Component Name |
| 1 |
Windshield Washer Solvent Container Filler Tube Assembly Retainer |
| 2 |
Windshield Washer Solvent Container Filler Tube Assembly Procedure
- Reach into the driver side of the engine compartment at the position where the windshield washer solvent container filler tube enters the windshield washer solvent container.
- Grasp the windshield washer solvent container filler tube where the filler tube enters the windshield washer solvent container.
- Twist the windshield washer solvent container fill tube slightly back and forth while pulling outward from the windshield washer solvent container.
- Remove the windshield washer solvent container filler tube.
- Inspect and replace any damaged O-ring.
- Use full strength windshield washer fluid at the windshield washer solvent container filler tube seal upon re-assembly.
|
