Removal Procedure
- Relive the fuel pressure. Refer to Fuel Pressure Relief .

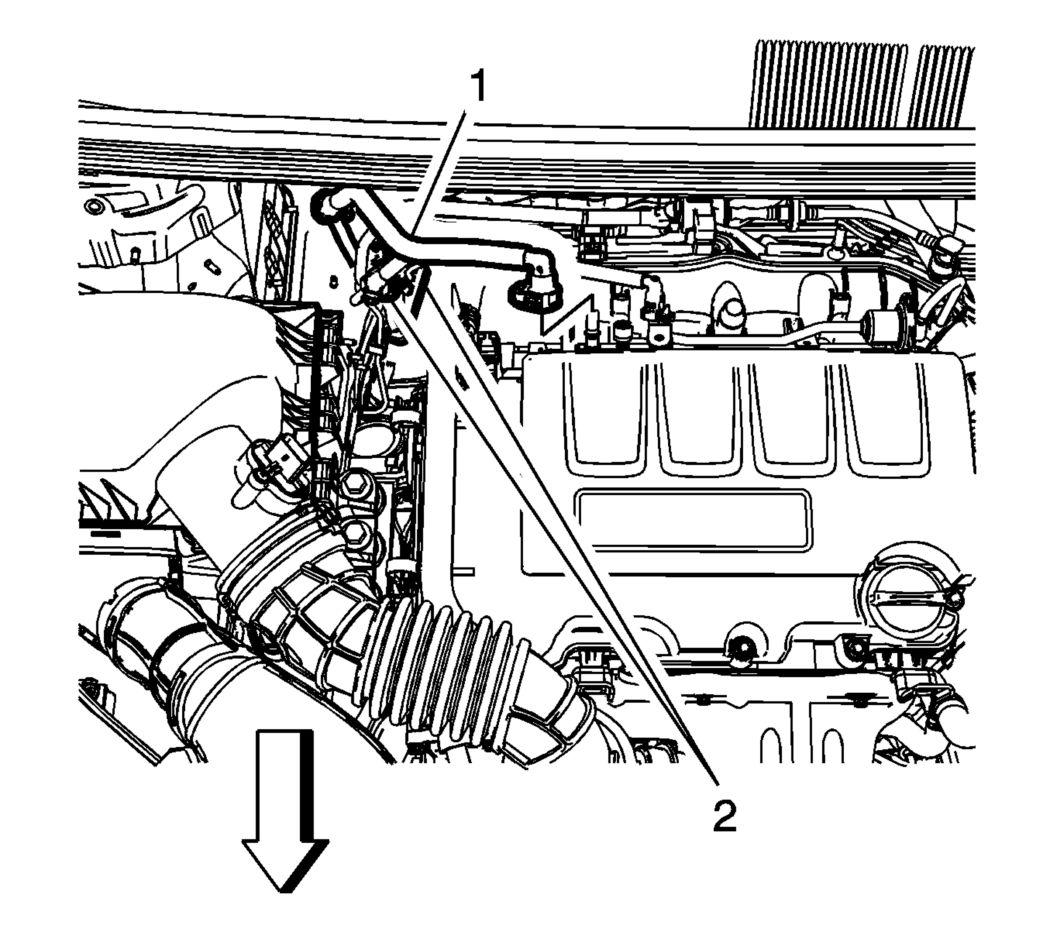

- Remove the fuel feed pipe (1) from the fuel rail. Refer to Plastic Collar Quick Connect Fitting Service .
- Remove the fuel feed pipe (1) from the retainers (2).
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Remove the fuel feed pipe (1) from the fuel feed pipe at the tank. Refer to Plastic Collar Quick Connect Fitting Service .

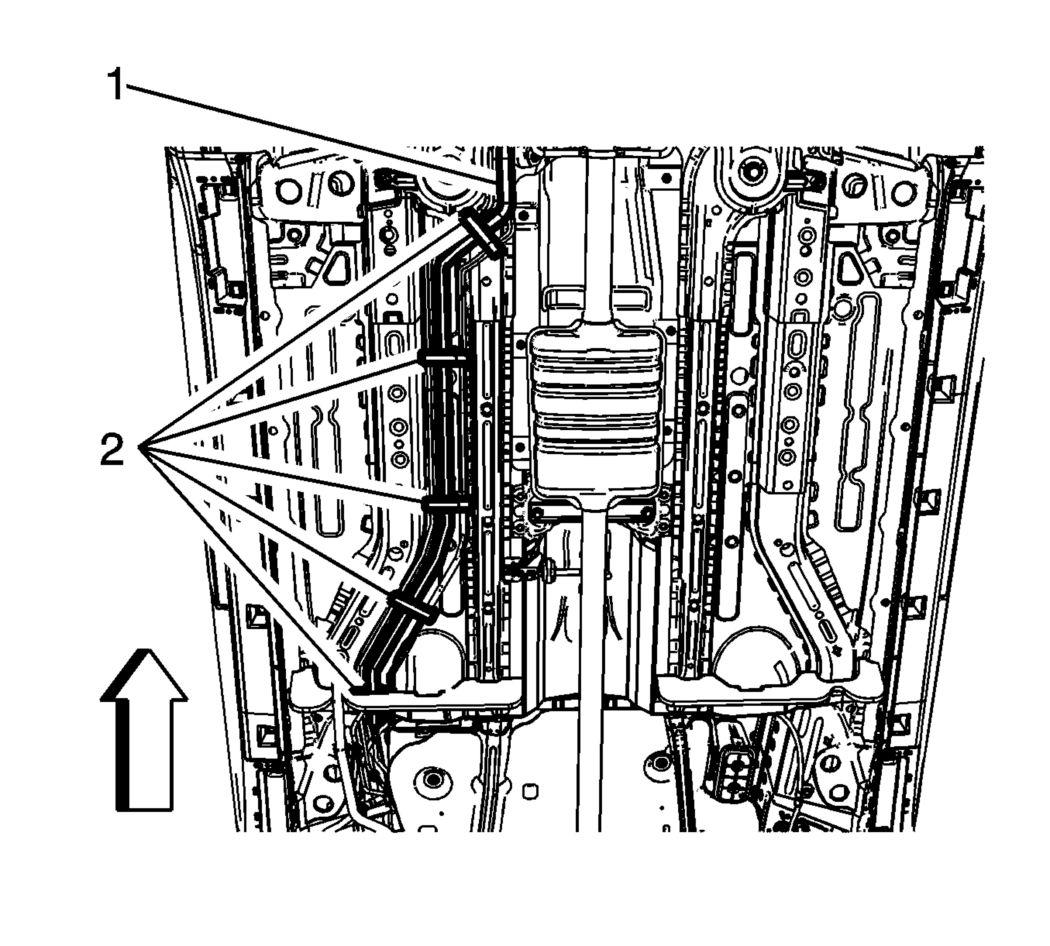

- Remove the fuel feed pipe (1) from the retainers (2).
- Remove the fuel feed pipe (1) from the vehicle.
WARNING:
Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.
