Turbocharger Wastegate Actuator Replacement
Turbocharger Wastegate Actuator Replacement

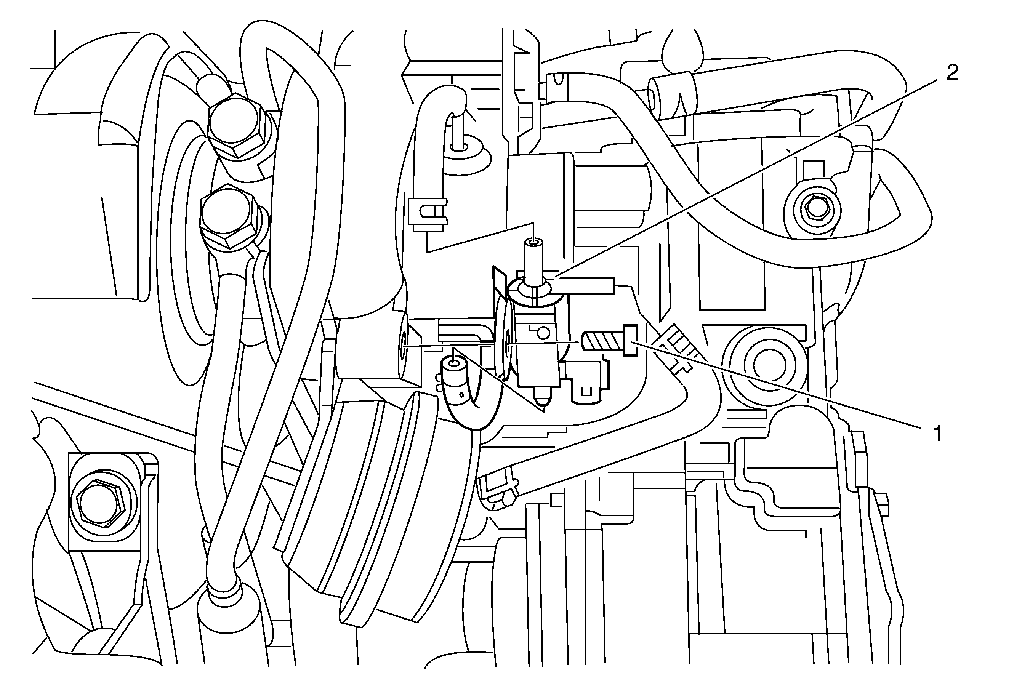

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . |
|
| 1 | Wastegate Actuator Bolt
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the vacuum hose. Tighten 10 N.m (89 lb in) |
| 2 | Turbocharger Wastegate Actuator |
