Module Power, Ground, Serial Data And Seat Memory Switch (A45)
WARNING: This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

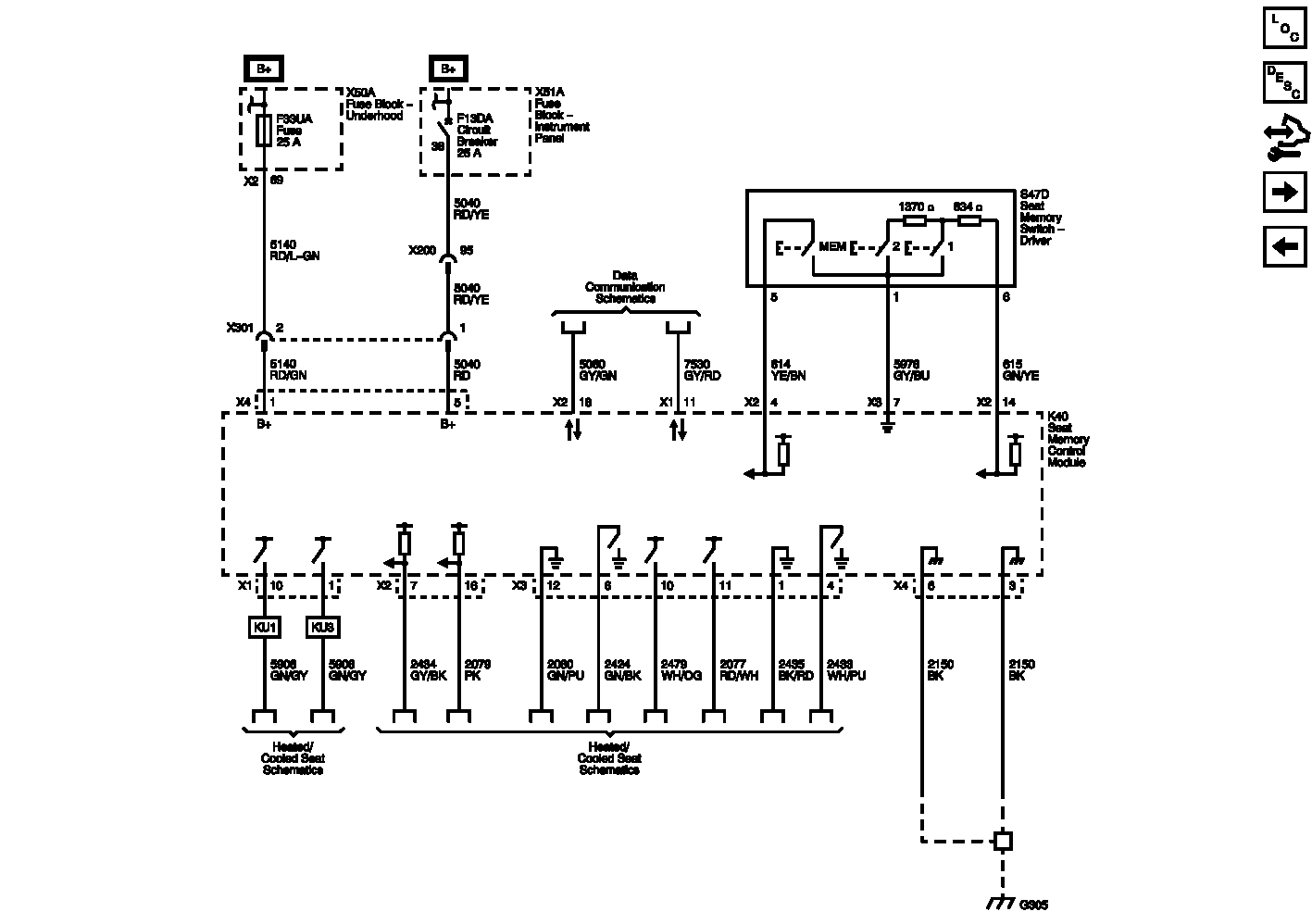

Fig 1: Module Power, Ground, Serial Data And Seat Memory Switch (A45) Wiring Schematic
