Wireless Communication Interface Antenna Replacement

WARNING: This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

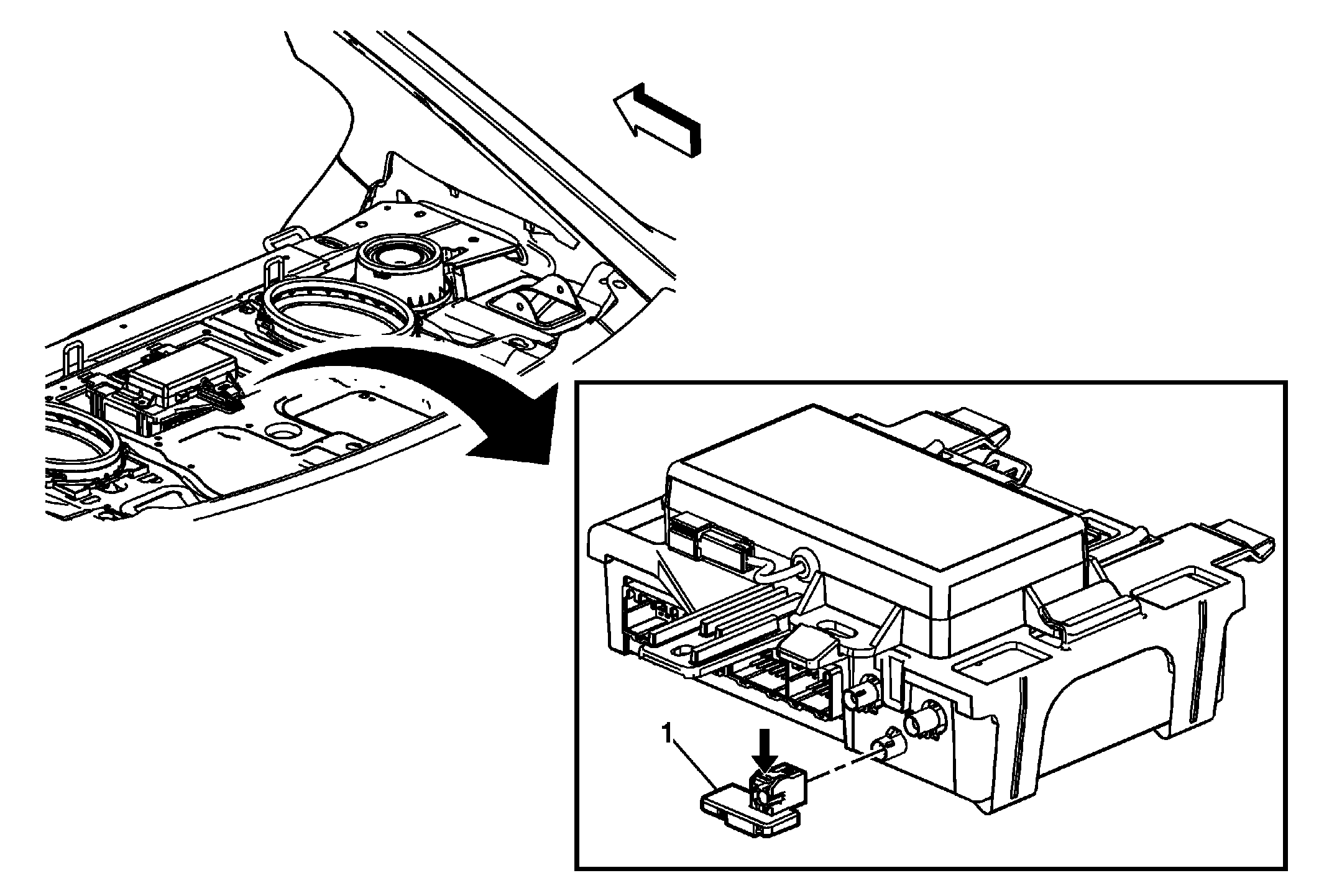

Fig 1: Wireless Communication Interface Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Wireless Communication Interface Antenna Assembly Procedure Access the antenna through the trunk by removing four push pins toward the rear of the vehicle that retain the upper fabric cover. Unsnap the antenna from the communication interface module.
