Radio Front Speaker Replacement

WARNING: This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

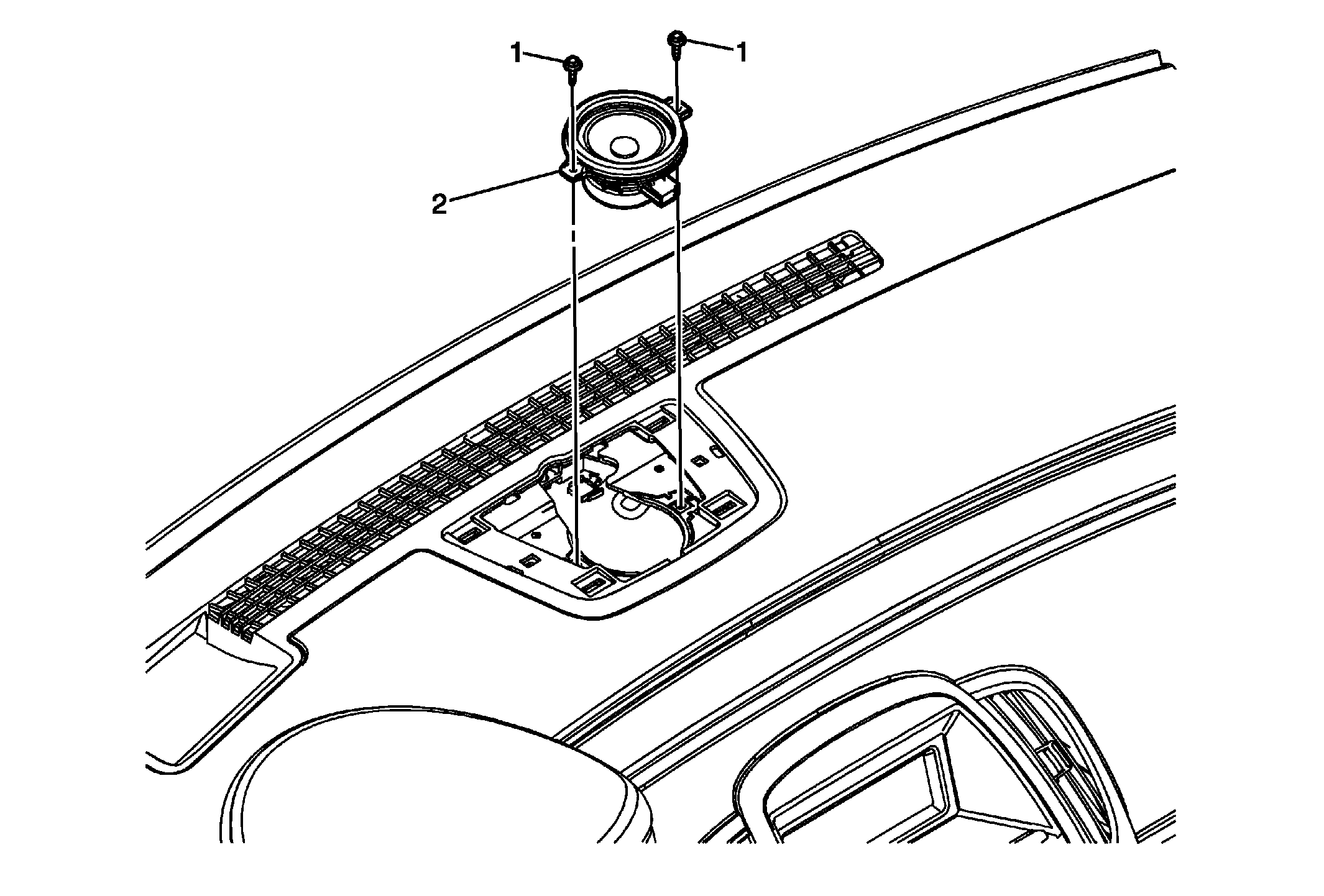

Fig 1: Radio Front Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radio front speaker grille. Refer to Radio Front Speaker Grille Replacement .
1	Radio Front Center Speaker Fastener (Qty: 2)
2	Radio Front Speaker Procedure Disconnect the electrical connector.
