Mobile Telephone Microphone Replacement

WARNING: This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

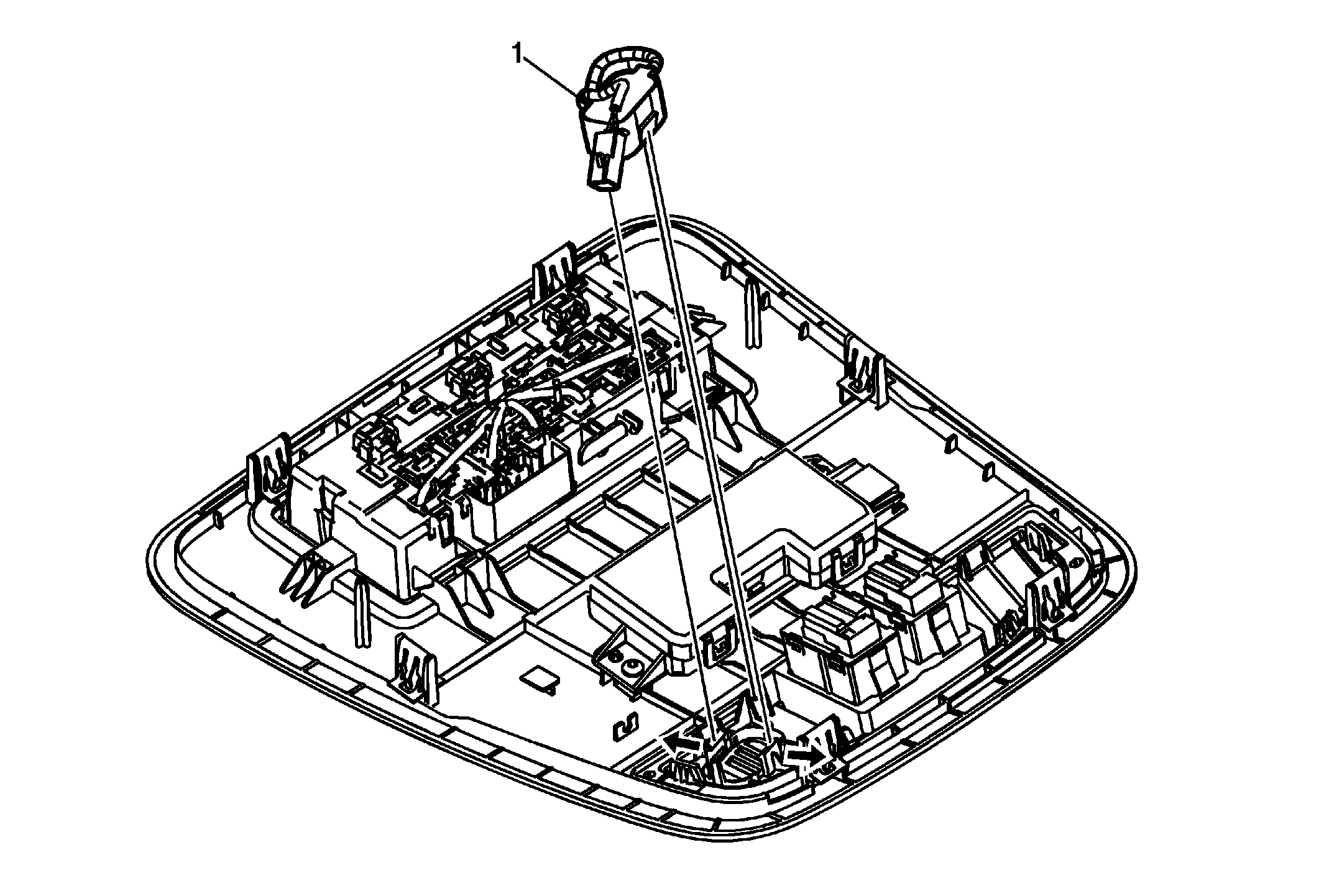

Fig 1: Mobile Telephone Microphone
GM2208486Courtesy of GENERAL MOTORS COMPANY
Mobile Telephone Microphone Replacement

Callout Component Name
Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .
1 Mobile Telephone Microphone
Procedure
Unsnap the microphone from the roof console.
