Home
>>
Buick
>>
2012
>>
Regal Base
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Electrical Component Locations
>>
Electrical Component Locator - Wheels/Vehicle Underbody Component Views
>>
Wheels/Vehicle Underbody Component Views
>>
Front Wheel Speed Sensor Components
Front Wheel Speed Sensor Components
Courtesy of

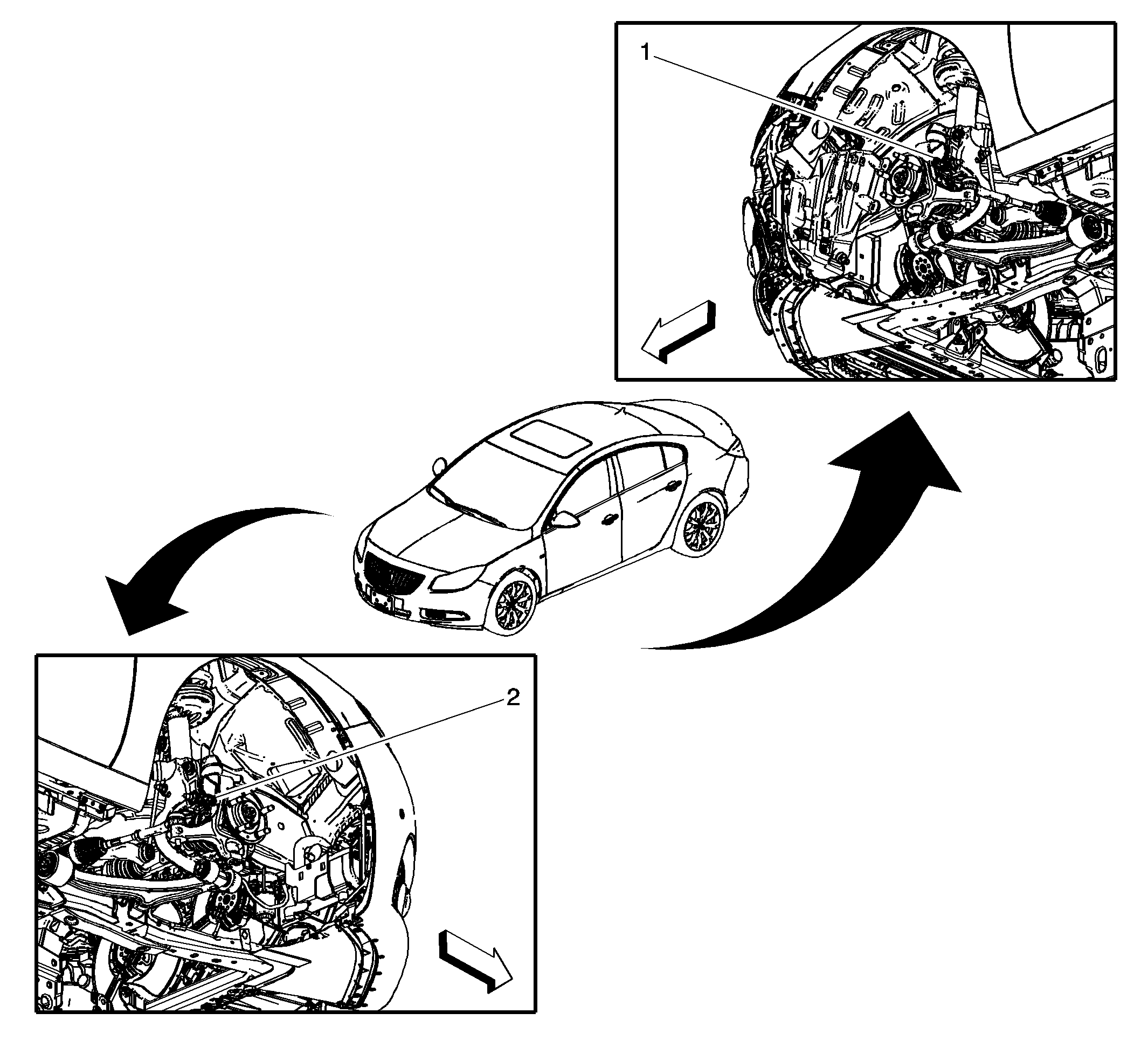

Front Wheel Speed Sensor Components
Component Name
Callout
B5LF Wheel Speed Sensor- Left Front
1
B5RF Wheel Speed Sensor- Right Front
2
Courtesy of
