Heater and Blower and Air Conditioning Control Module Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

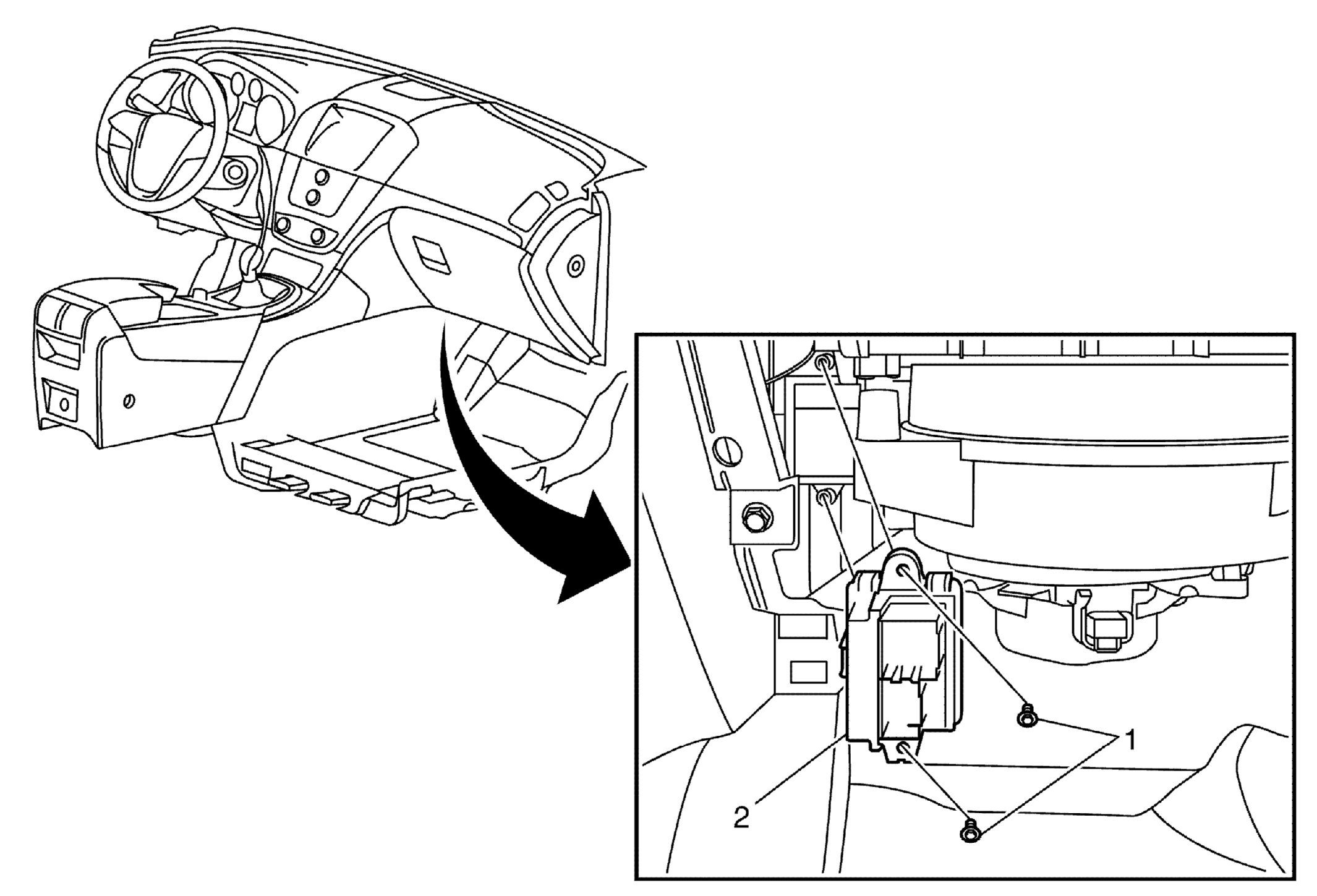

Fig 1: Heater And Blower & Air Conditioning Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side . Disconnect the heater and blower and air conditioning control module electrical connectors.
1	Heater and Blower and Air Conditioning Control Module Fastener (Qty: 2)
2	Heater and Blower and Air Conditioning Control Module

Callout

Component Name

Preliminary Procedure

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side .
Disconnect the heater and blower and air conditioning control module electrical connectors.

Heater and Blower and Air Conditioning Control Module Fastener (Qty: 2)

Heater and Blower and Air Conditioning Control Module
