Radio Rear Compartment Speaker Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

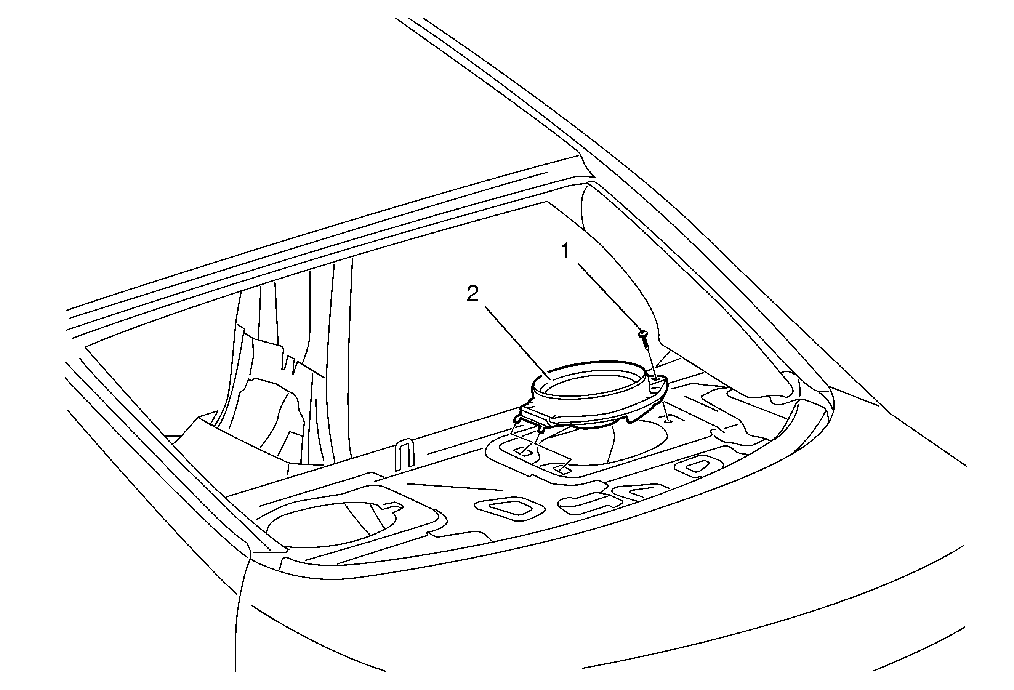

Fig 1: Radio Rear Compartment Speaker & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (with HP6) , Rear Window Panel Trim Replacement (without HP6) .
1	Radio Rear Compartment Speaker Fastener CAUTION: Refer to Fastener Caution .
2	Radio Rear Compartment Speaker Procedure Disconnect the radio rear compartment speaker electrical connector.
