Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

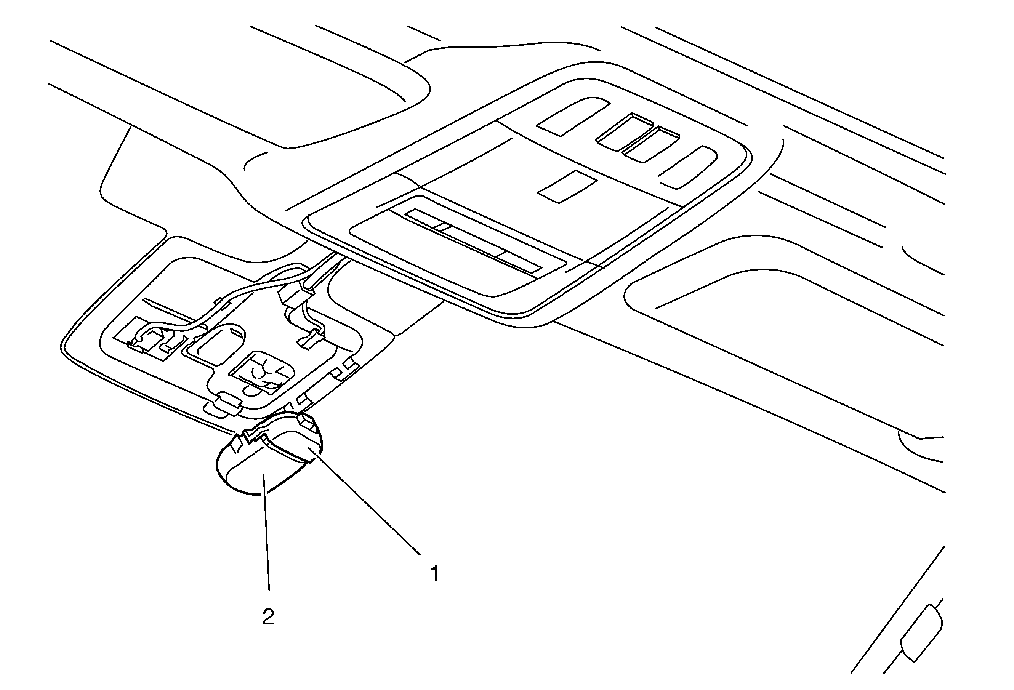

Fig 1: Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inside rearview mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Cover Replacement
1	Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor Retainer TIP: Use a small flat-bladed tool to release the locking retainer on the windshield outside moisture and headlamp automatic control ambient light sensor and push the cap upwards.
2	Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor
