Air Conditioning Refrigerant Temperature Sensor Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
|
Preliminary Procedures
- Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement
.
- Remove the floor air outlet duct - right side. Refer to Floor Air Outlet Duct Replacement - Right Side
.
|
| 1 |

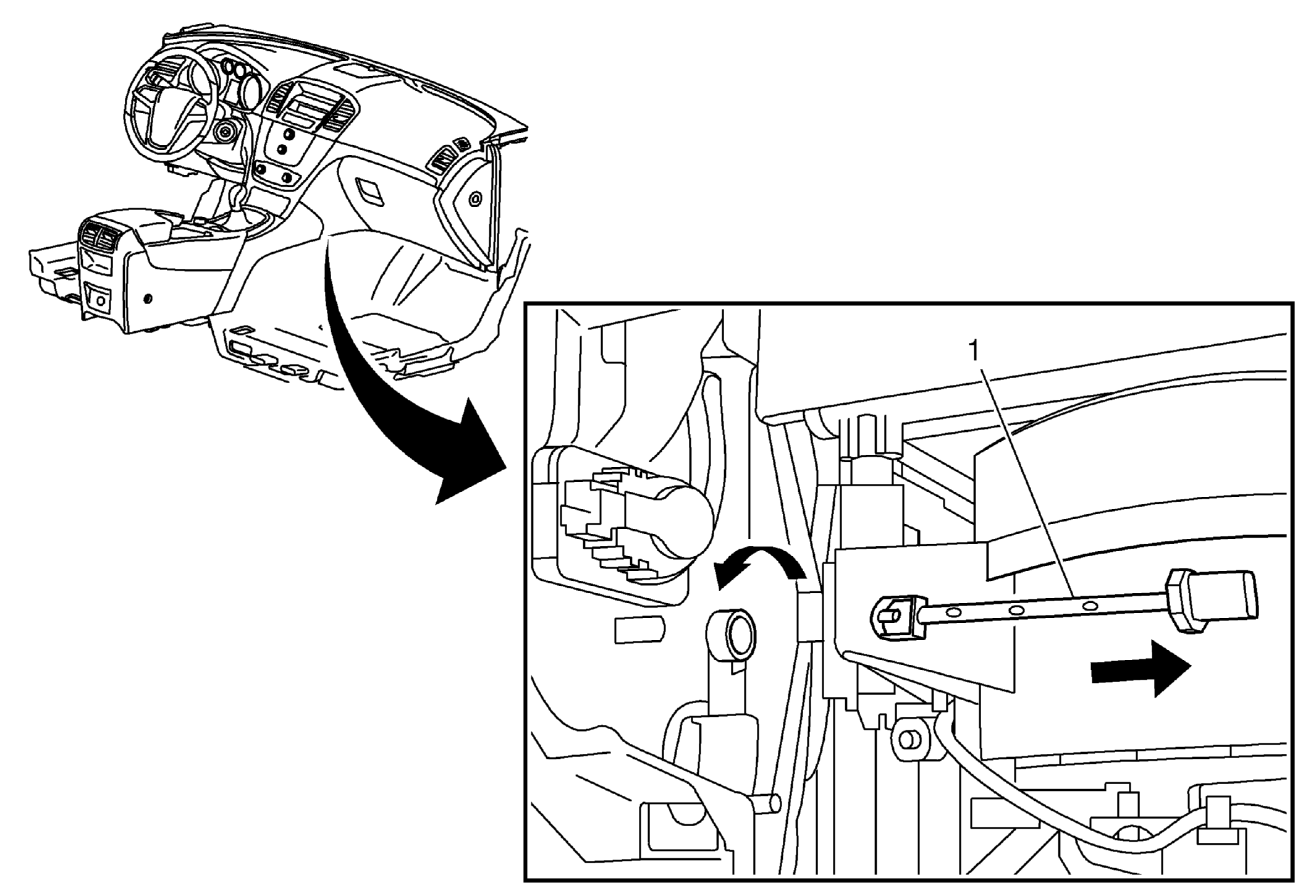

Air Conditioning Refrigerant Temperature Sensor Procedure
- Disconnect the refrigerant temperature sensor electrical connector.
- Twist and pull the refrigerant temperature sensor from the HVAC module assembly.
|
