Radio Antenna Amplifier Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

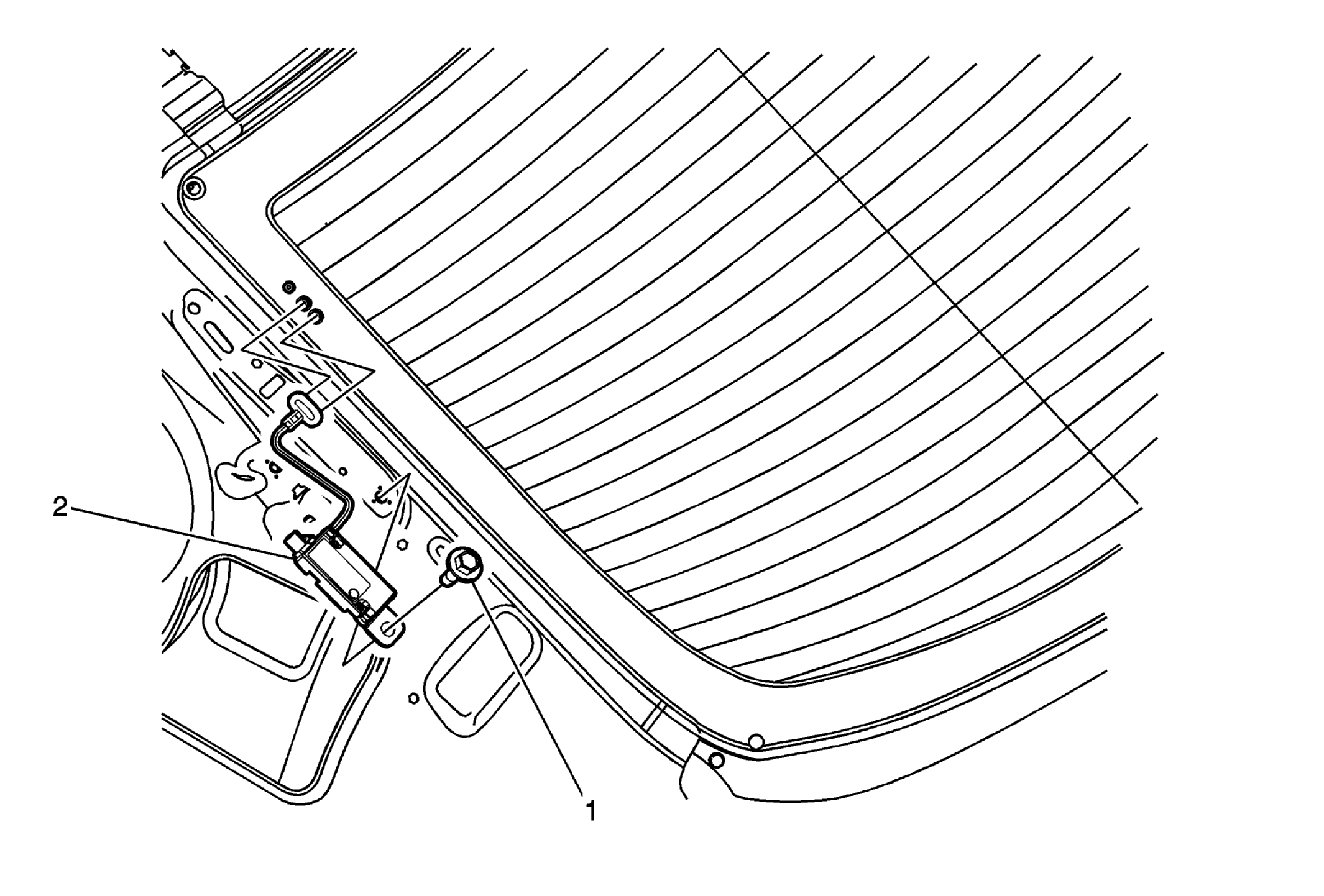

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the right body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement (Sedan) . |
|
| 1 | Radio Antenna Amplifier Fastener
CAUTION:
Refer to Fastener Caution
.
Tighten: 8 N.m (71 lb in) |
| 2 | Radio Antenna Amplifier Procedure: Disconnect the electrical connector. |
