Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

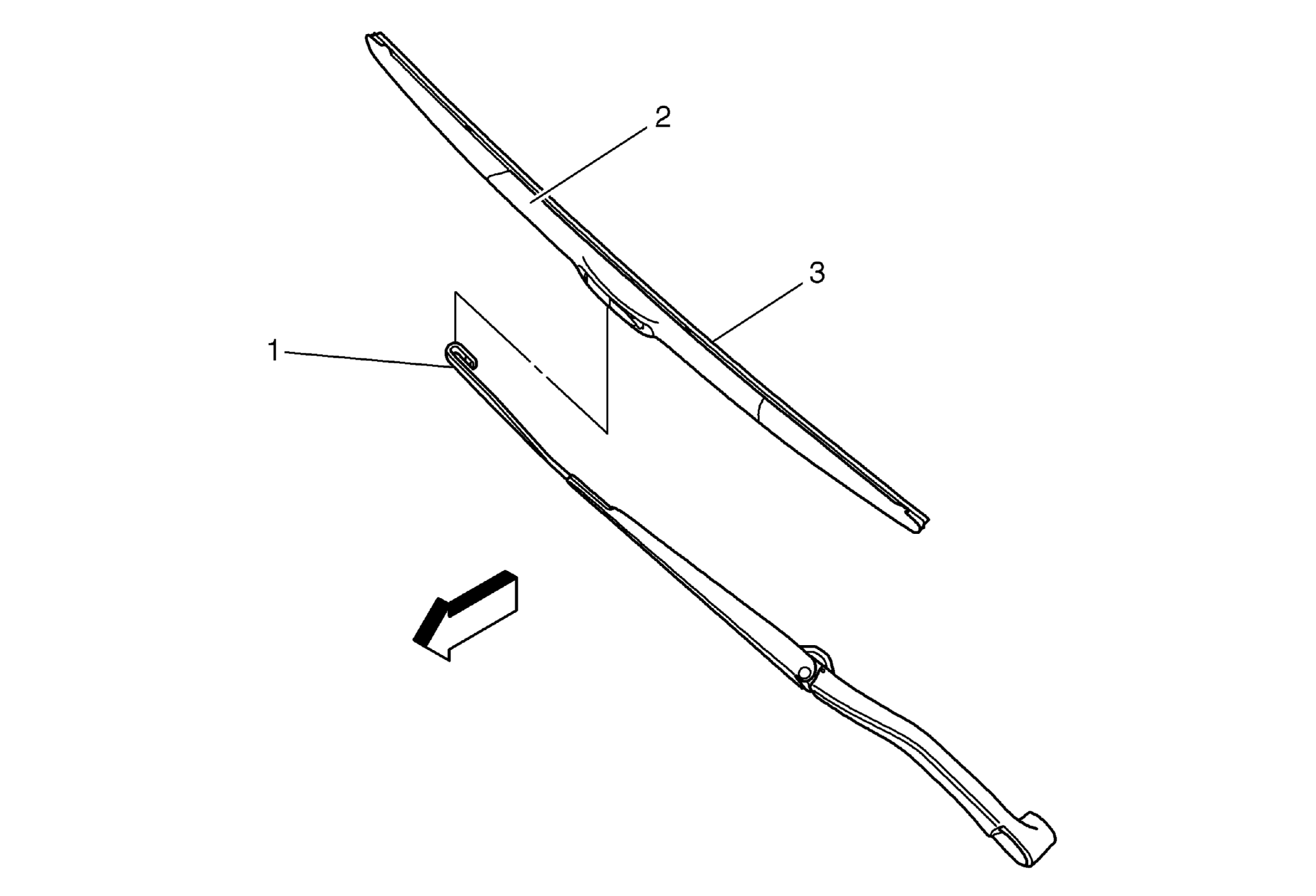

Fig 1: Windshield Wiper Blade

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise the wiper arm up off the windshield.
1	Windshield Wiper Blade Cap Tip: Use a small flat-bladed tool to open the cap.
2	Windshield Wiper Blade Procedure Push upward the windshield wiper blade. Slide the windshield wiper blade from the wiper arm. Carefully release the wiper arm back to the windshield.
3	Windshield Washer Blade Tip: Discard if rubber appears worn or does not wipe the windshield clean.
