Release Systems Schematics

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

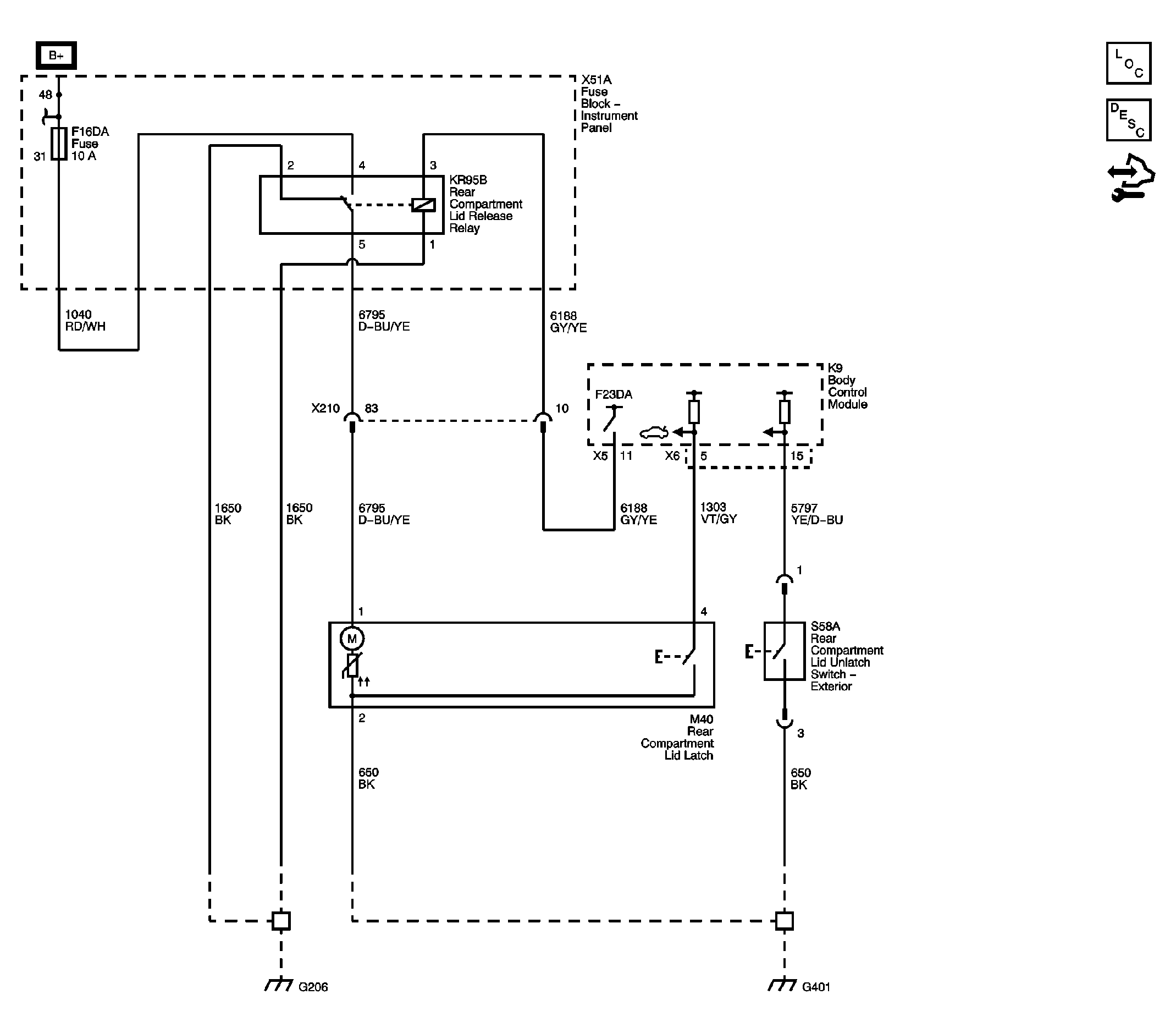

Fig 1: Release Systems Wiring Schematic
GM2375447Courtesy of GENERAL MOTORS CORP.
