Subsytem References (1 of 3) Wiring Schematics

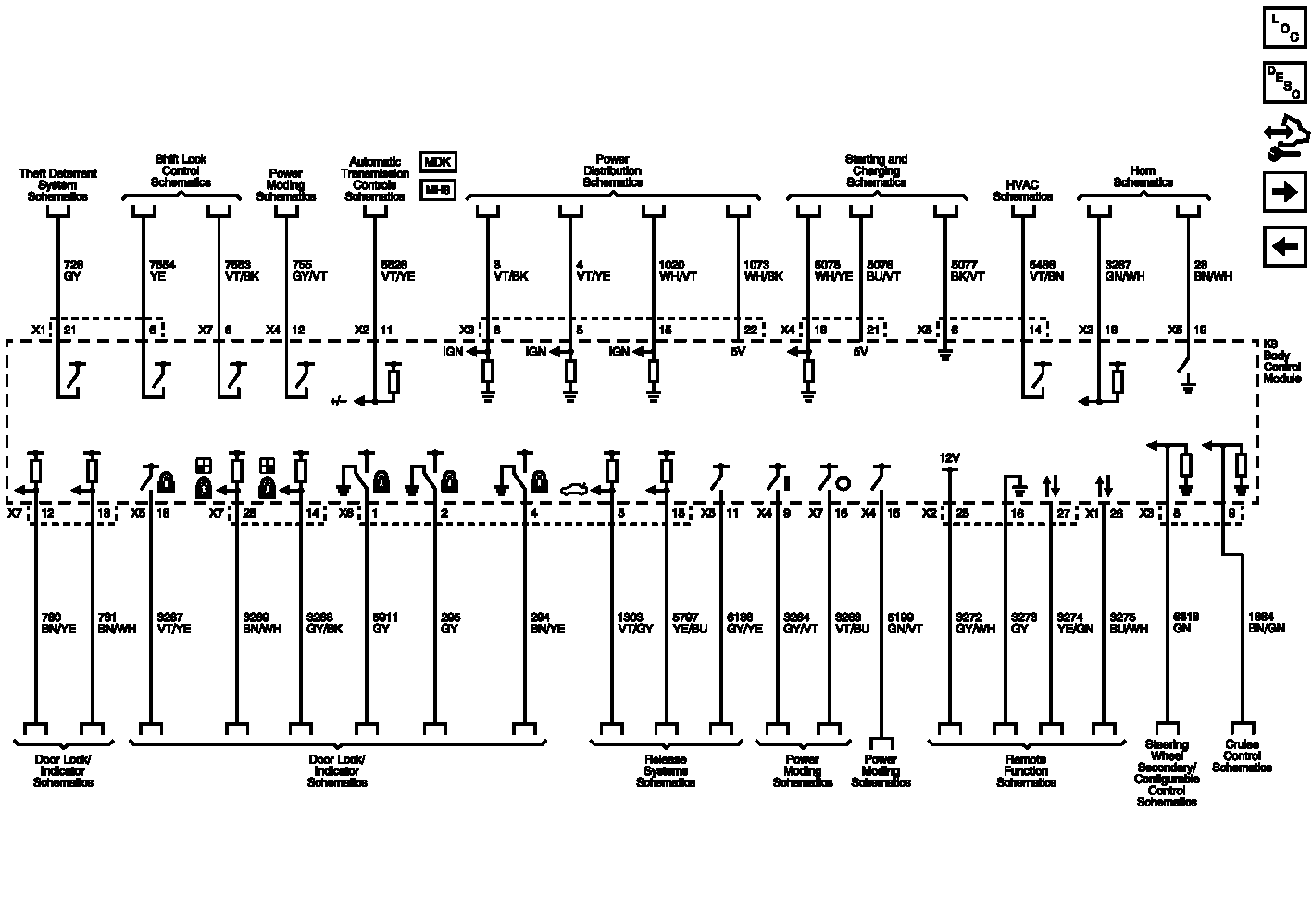

Fig 1: Subsytem References (1 of 3) Wiring Schematics

GM2611728

Courtesy of GENERAL MOTORS COMPANY
